Parts Lists

Molex KK Series connectors parts list: Media:molex-connectors.pdf

Diagrams

Drawings and other diagrams with dimensions not in CAD format.

Cabinet

Image Description File

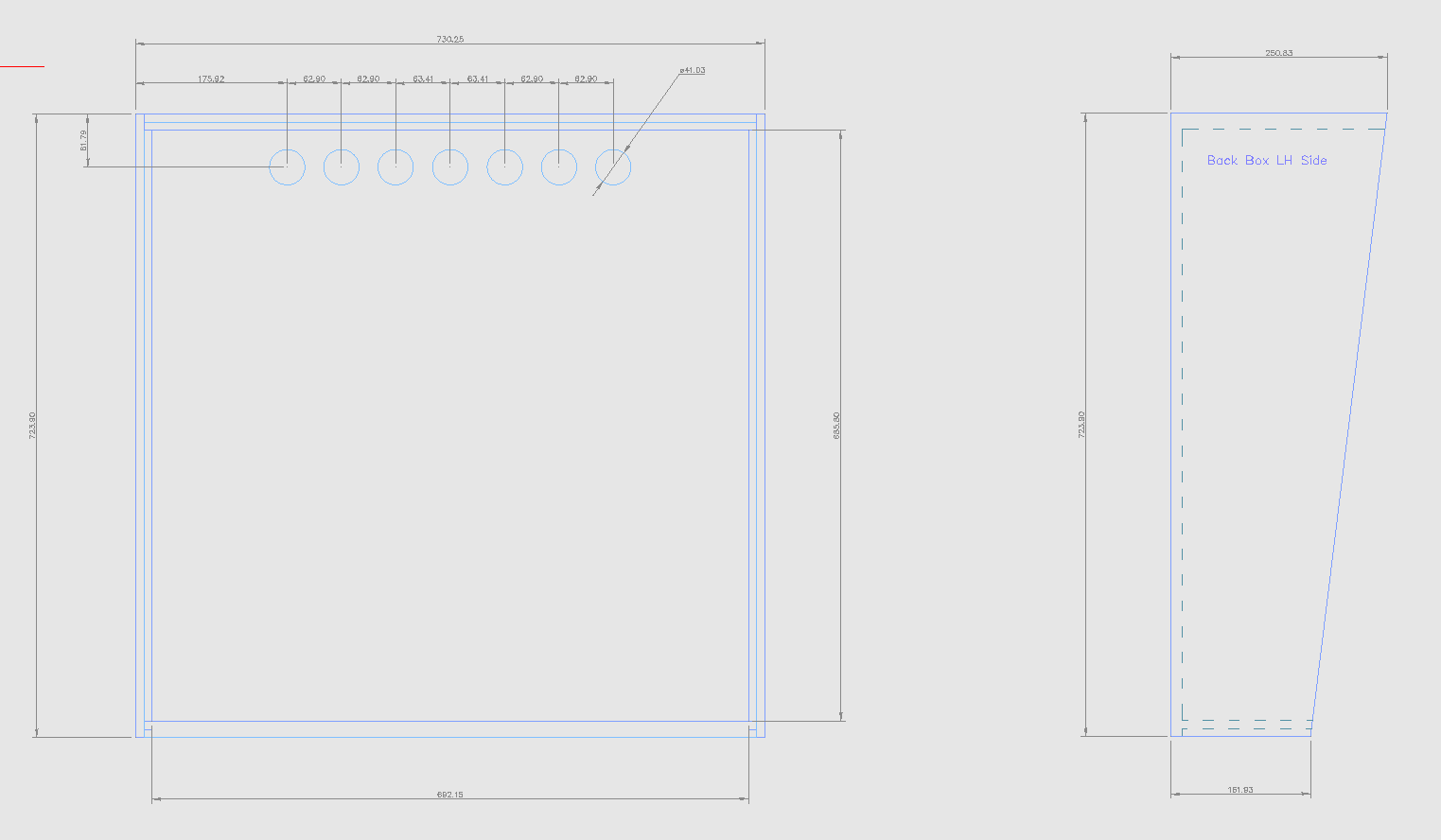

Wpc-backbox-1.png WPC Backbox (in millimeters) Media:wpc-backbox-1.png

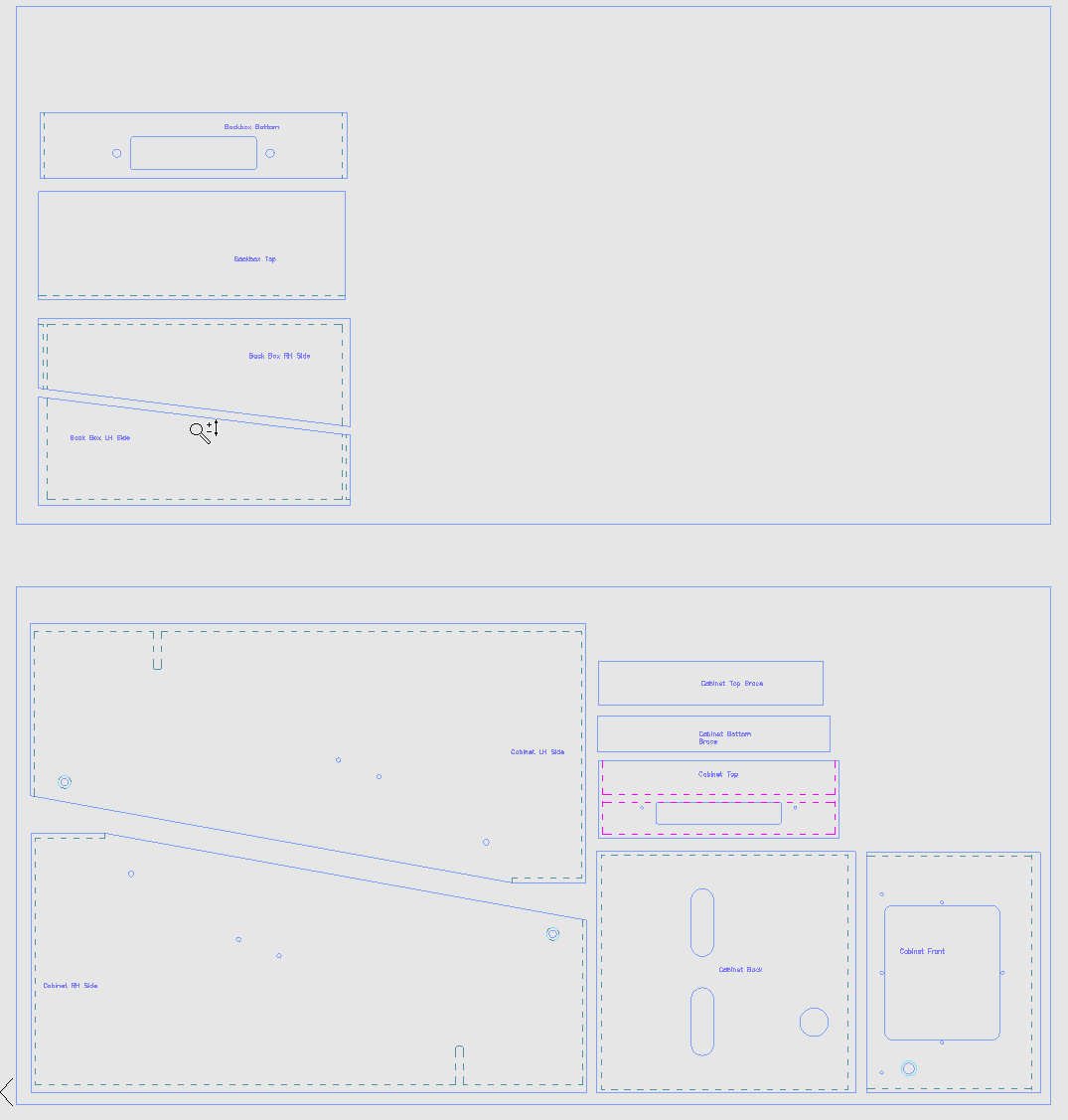

Wpc-cabinet-1.png WPC full cabinet cut guide for 4" x 8" plywood Media:wpc-cabinet-1.png

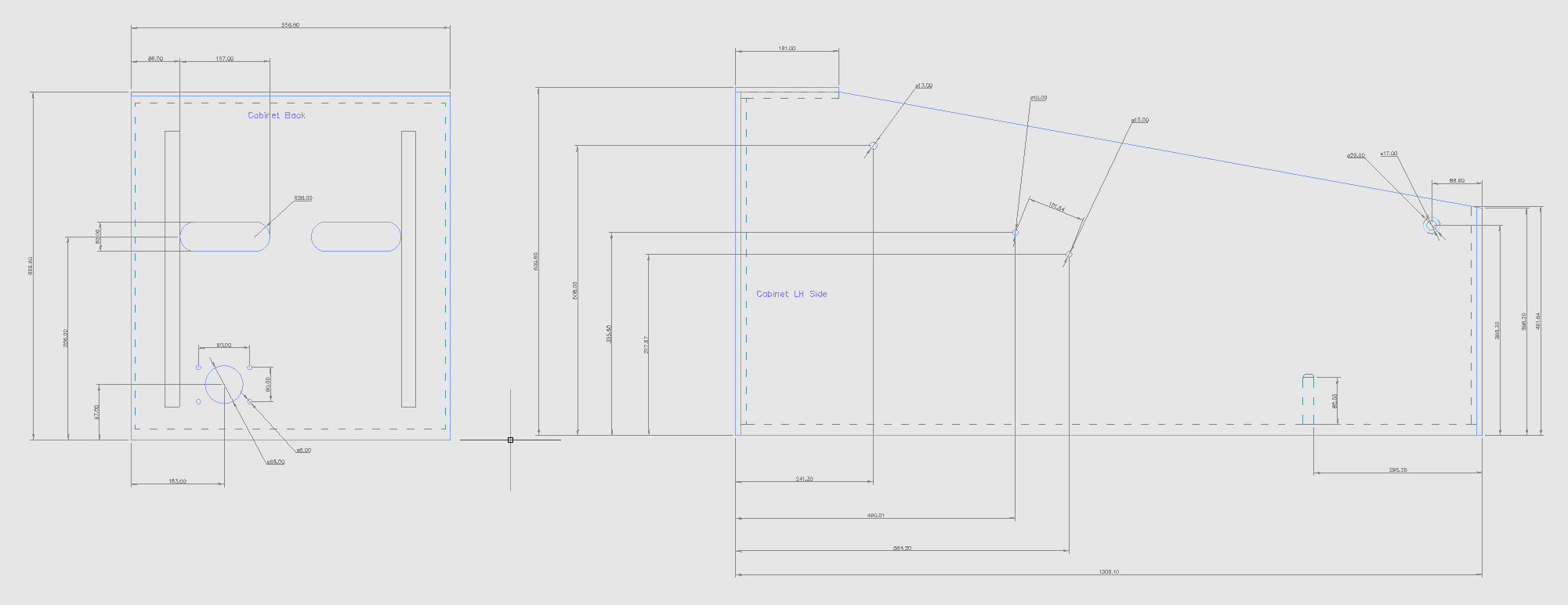

Wpc-cabinet-2.png WPC Main cabinet side and back (in millimeters) Media:wpc-cabinet-2.png

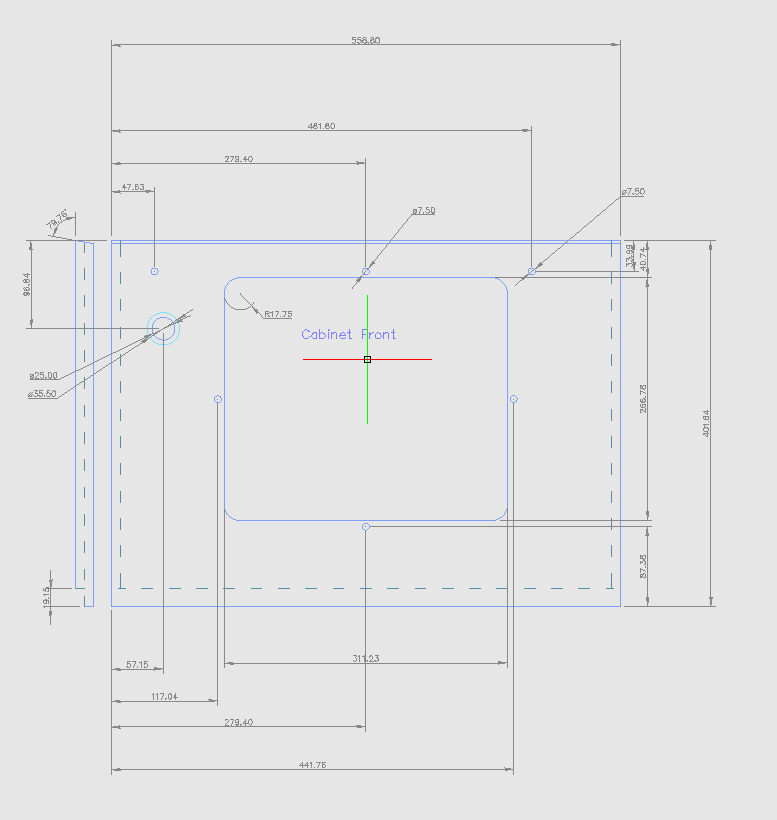

Wpc-cabinet-3.png WPC Cabinet front (in millimeters) Media:wpc-cabinet-3.png

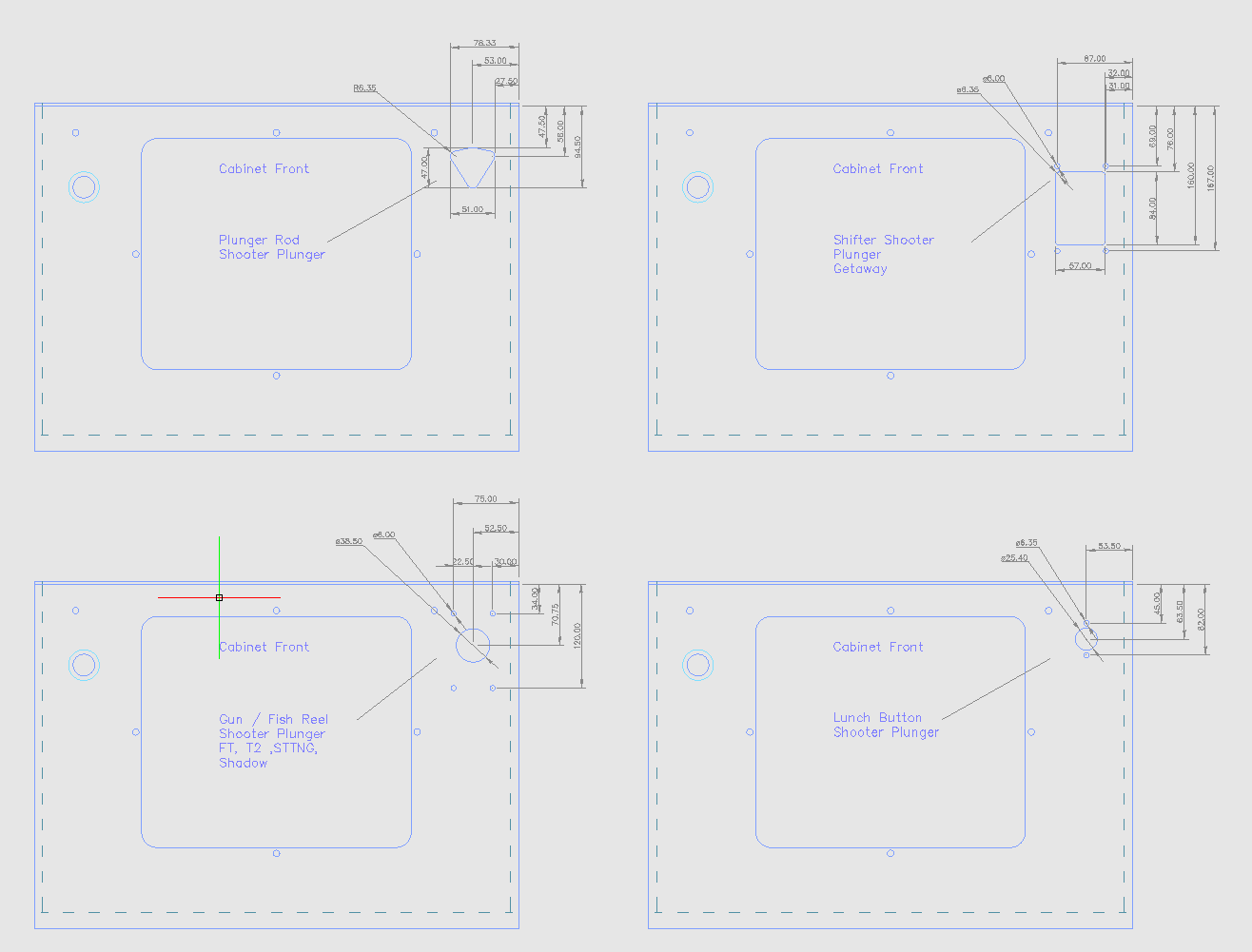

Wpc-cabinet-4.png WPC Cabinet front for multiple ball launchers (in millimeters) Media:wpc-cabinet-4.png
SYS7Cab Upper 200wide.png SYS7 Cabinet Upper (Pharaoh),Solidworks 2015 Media:Pharaoh Cabinet Upper 3-6-2017.zip
SYS7 Head PDF SNIP.jpg SYS7 Cabinet Upper (Pharaoh), PDF Media:Pharaoh Cabinet Upper.pdf
SYS7 Lower PDF SNIP.jpg SYS7 Cabinet Lower (Pharaoh), PDF Media:Pharaoh Cabinet Lower.pdf

Playfield

Image Description File

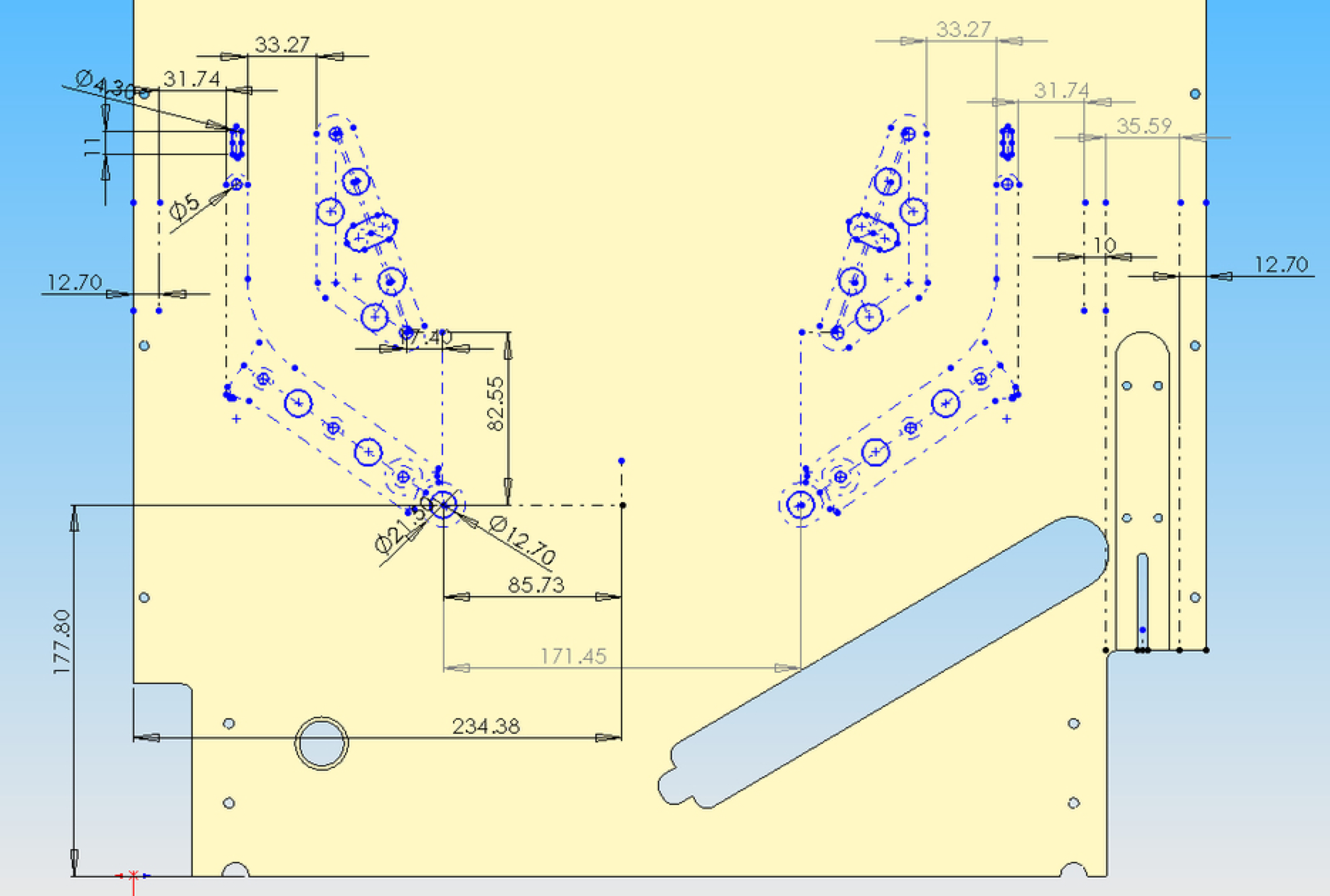

Williams-lower-playfield.png WPC lower playfield dimensions (millimeter) Media:williams-lower-playfield.png

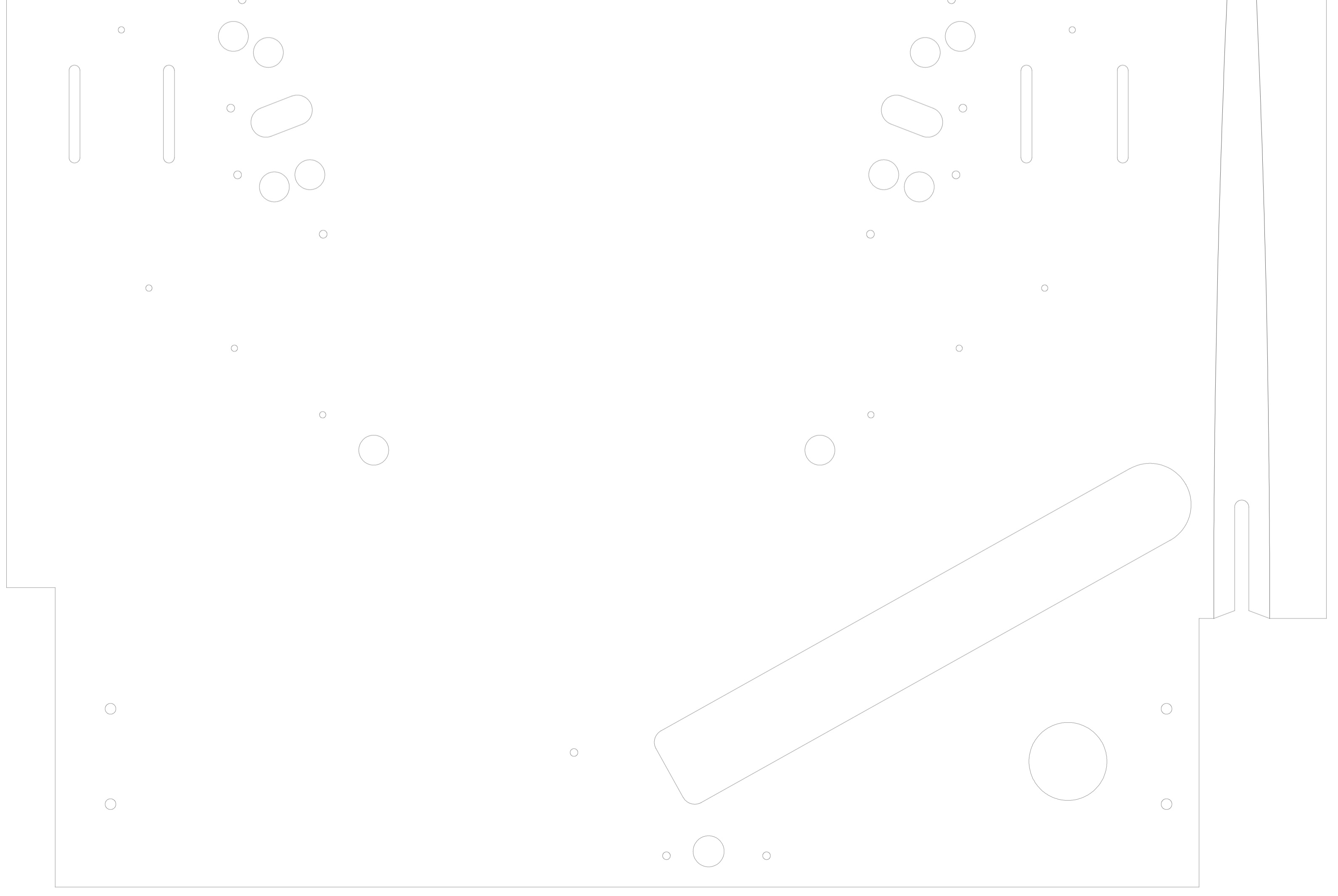

Williams-early-ss.jpg Williams Early Solid State lower playfield

C-size for sending to print store (inches)

Media:Williams_early_SS_c_size.pdf

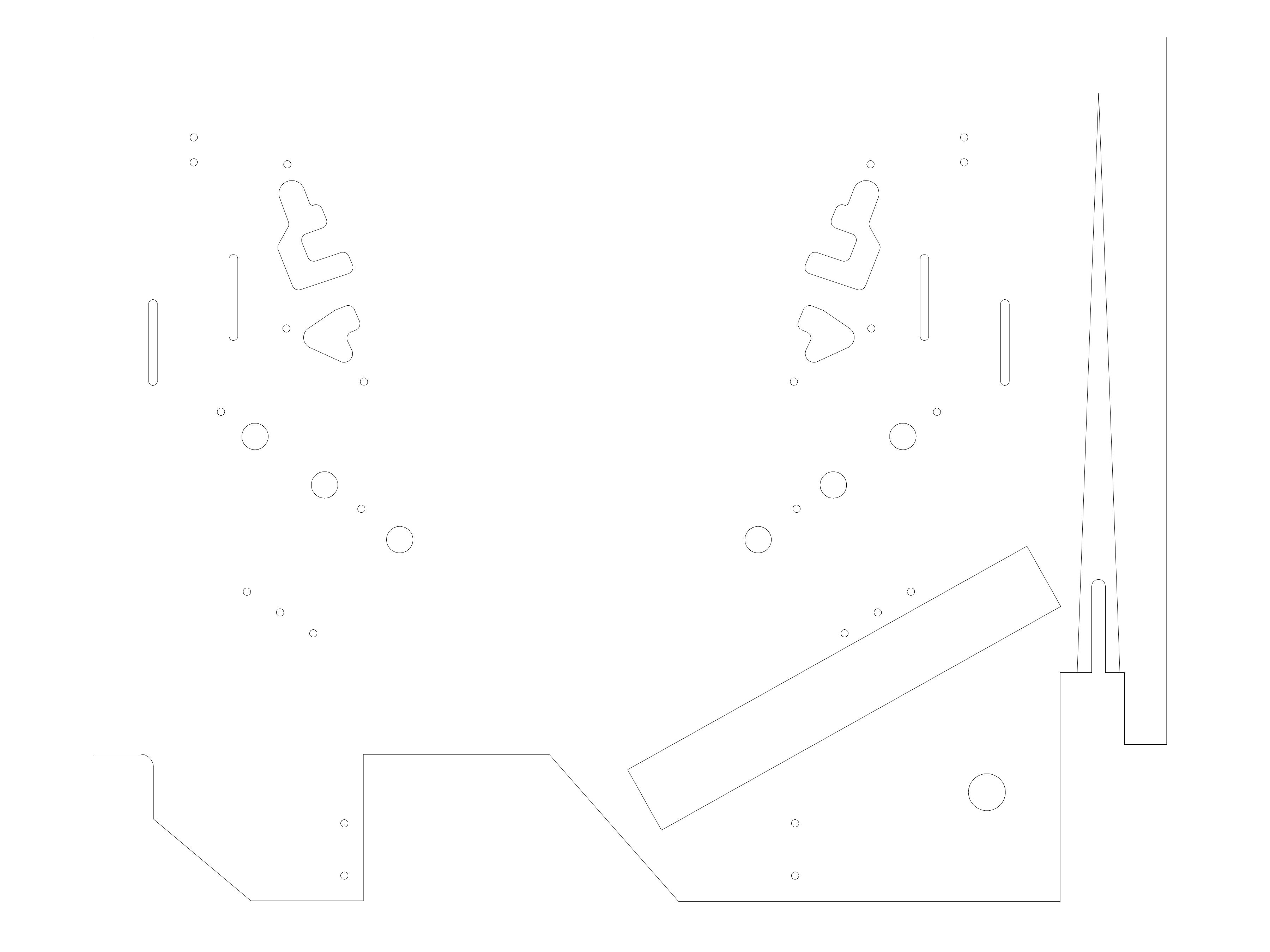

Stern-lower-pf.jpg Stern lower playfield

C-size for sending to print store (inches)

Media:Stern_c_size.pdf

Devices

Image Description File

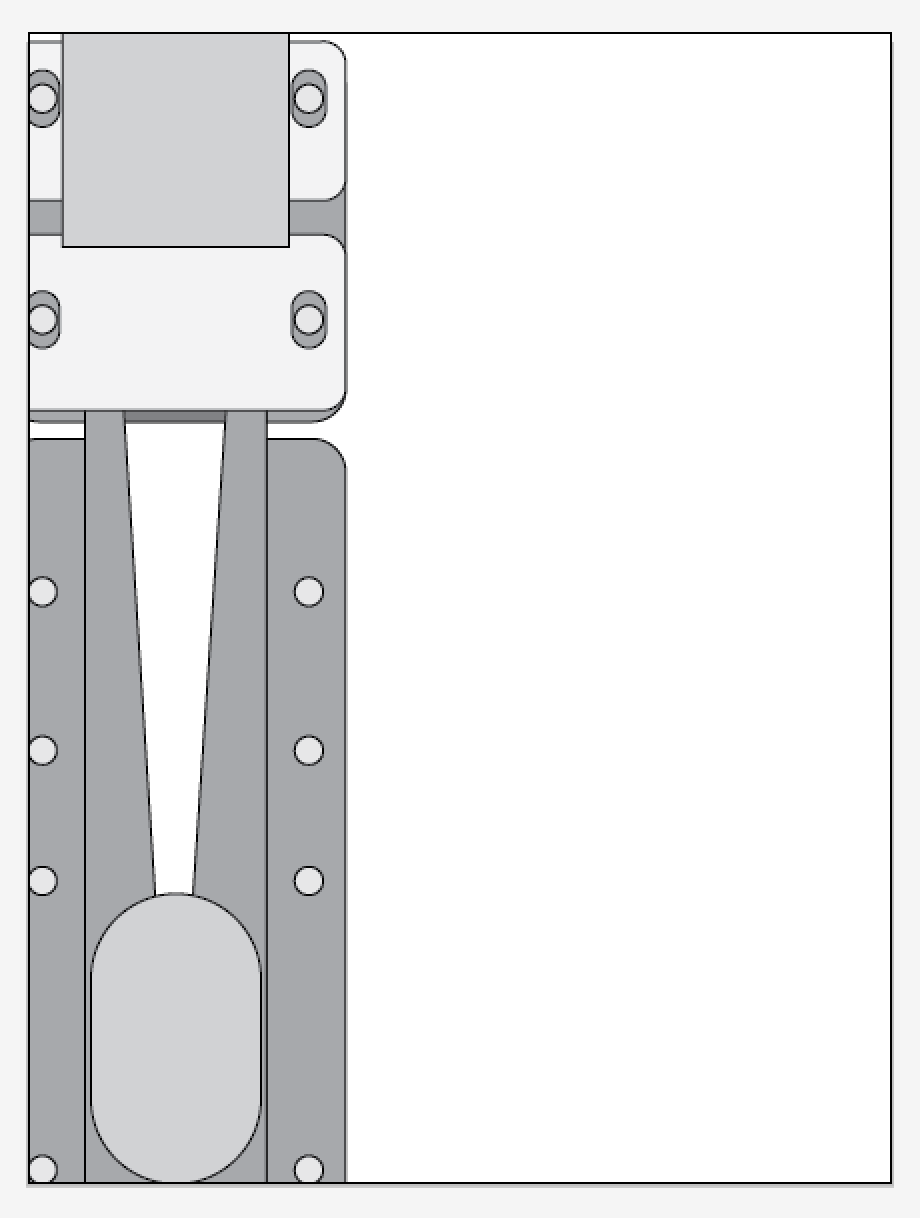

Ball-trough-diagram.png Ball Trough (6-Ball) Media:6balltrough.ai

Schematics

Files for EagleCAD or general electronic schematics.

Original Equipment

Image Description File

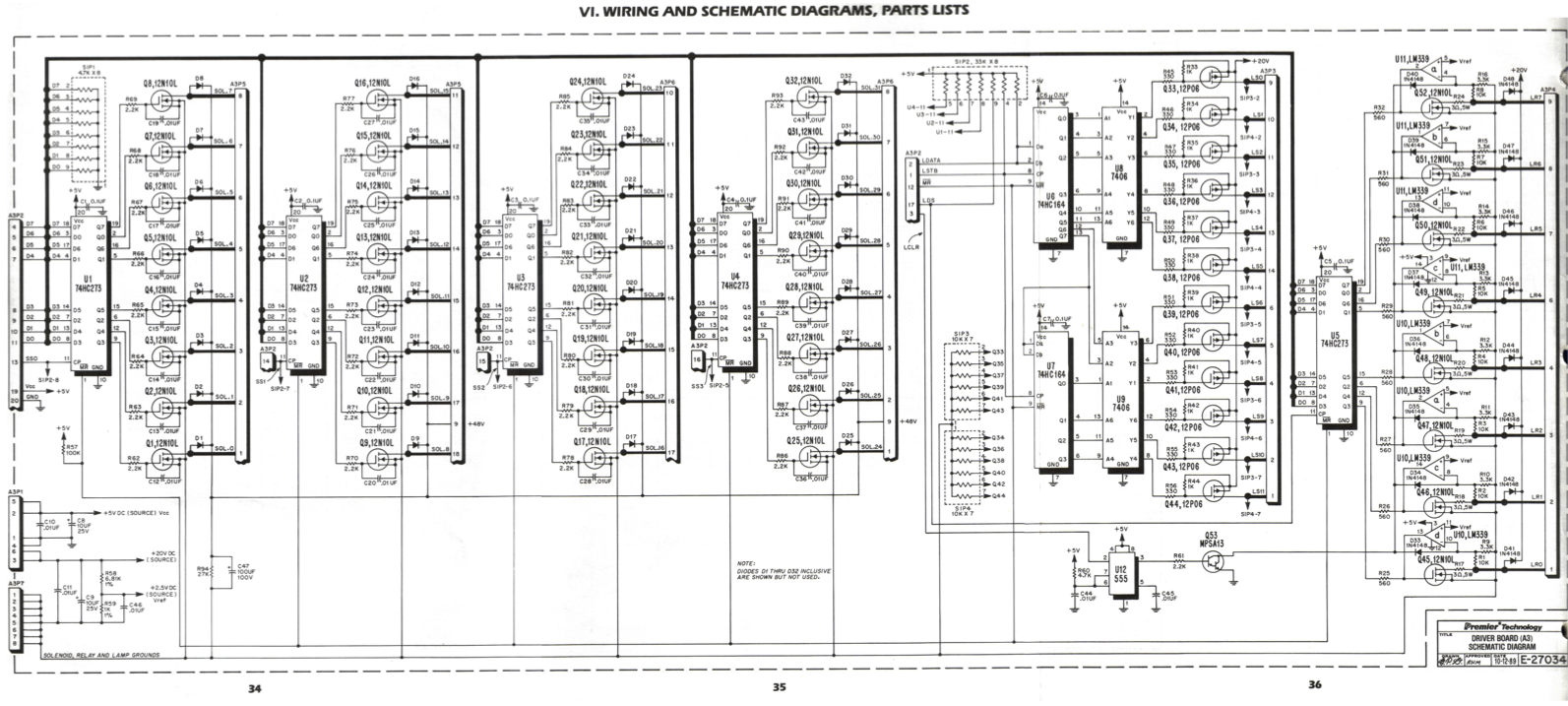

Gottlieb-system-3-image.png Gottlieb System 3 Driver Board Media:gottlieb-system-3.pdf

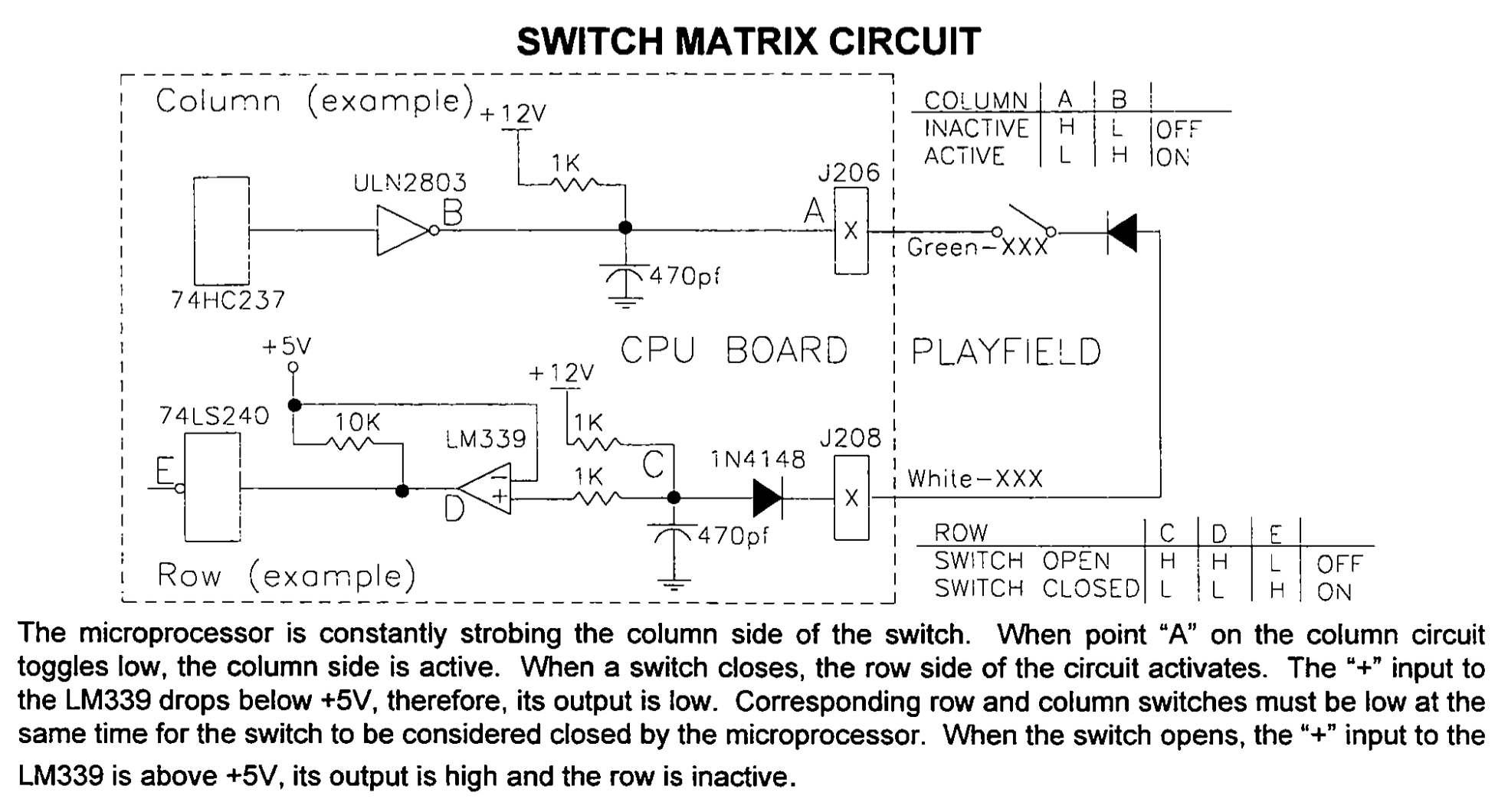

Wpc-sw.png WPC Switch Matrix design Media:wpc-sw.pdf

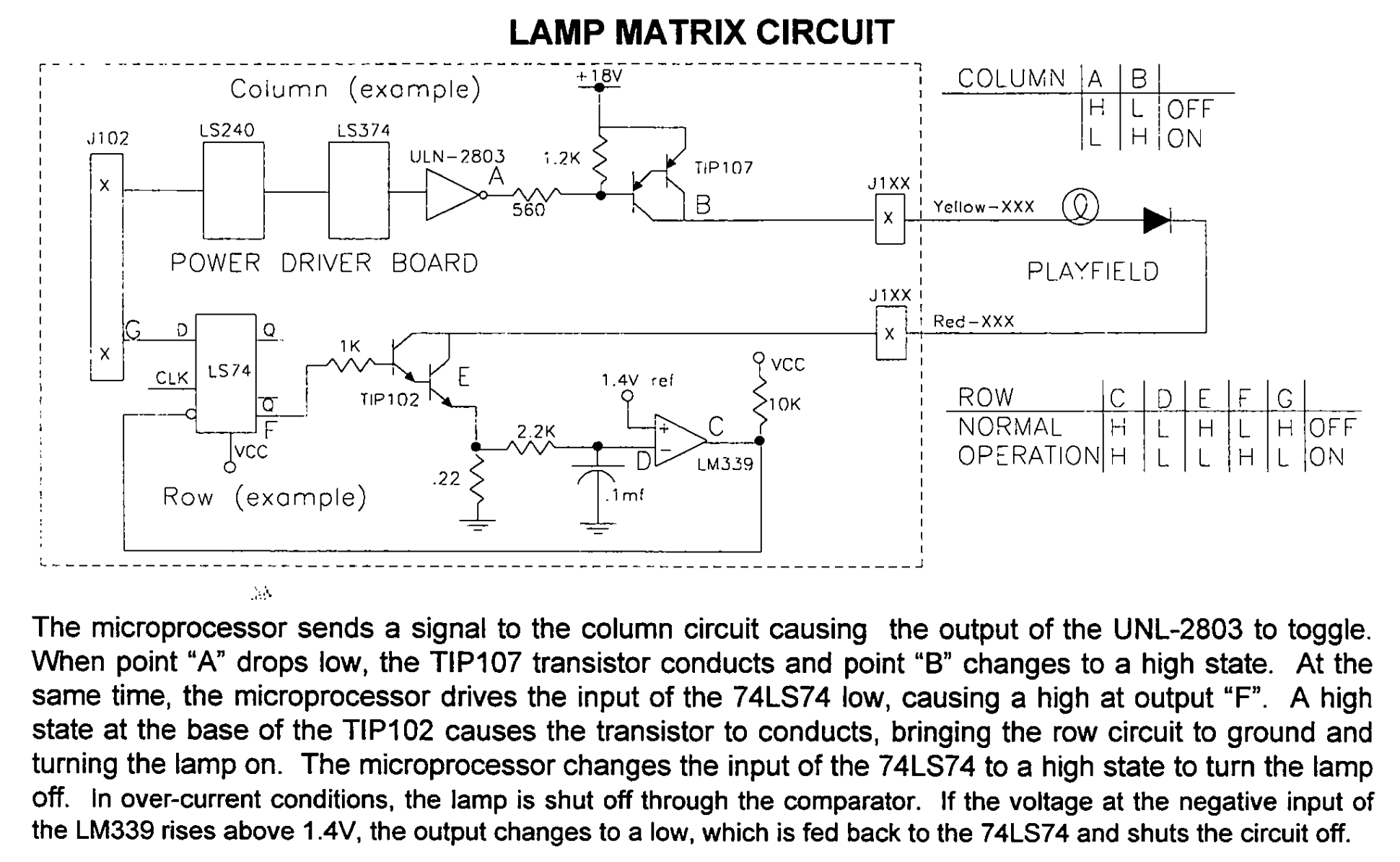

Wpc-lamp.png WPC Lamp Matrix design Media:wpc-lamp.pdf

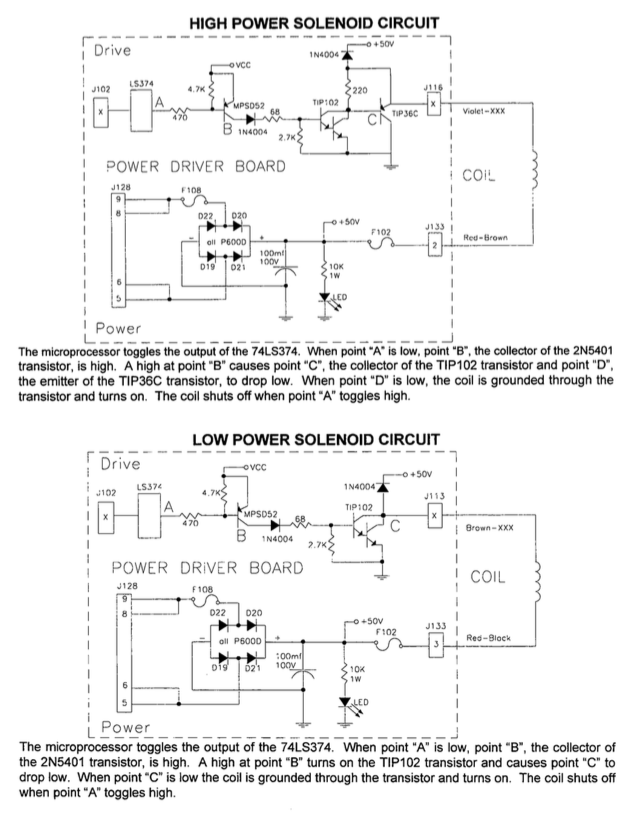

Wpc-solenoid.png WPC Solenoid design Media:wpc-solenoid.pdf

2D CAD Drawings

For use in AutoCAD or DraftSight when doing playfield layout.

Playfields

Image Description File

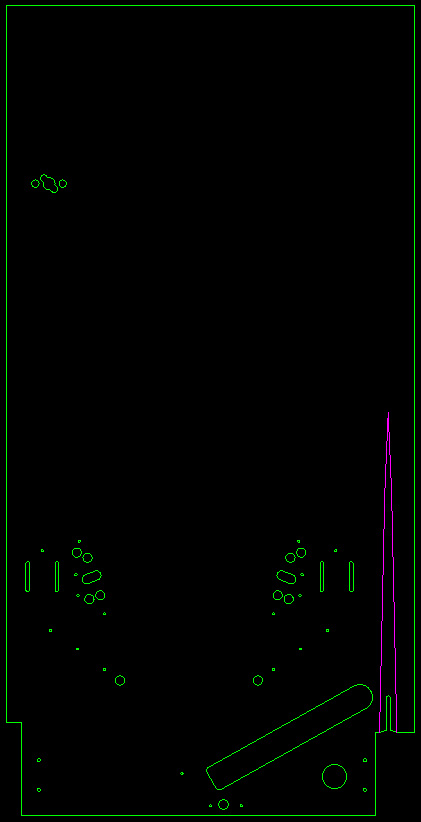

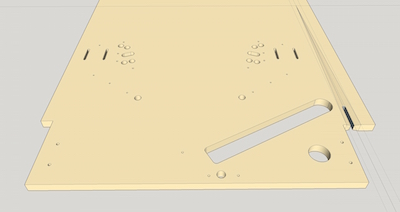

Williams playfield.jpg Williams Early SS playfield Media:Williams_playfield.dwg
Williams Playfield.jpg Williams Early SS playfield for Sketchup Media:Williams_Blank_Playfield.skp

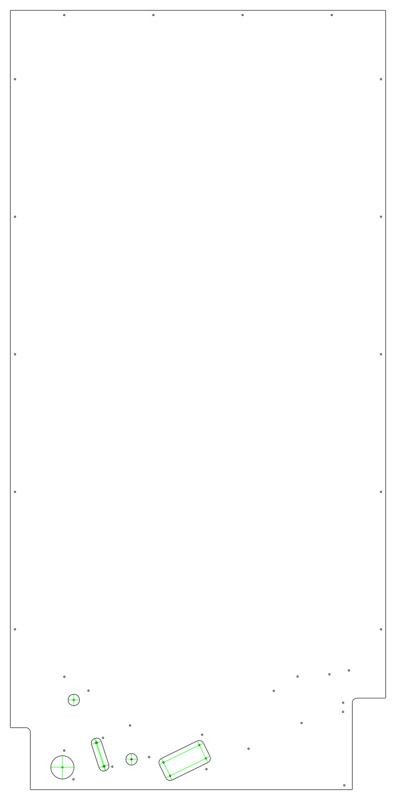

Bally-ss.jpg Bally SS Blank Playfield Media:bally-blank.dwg

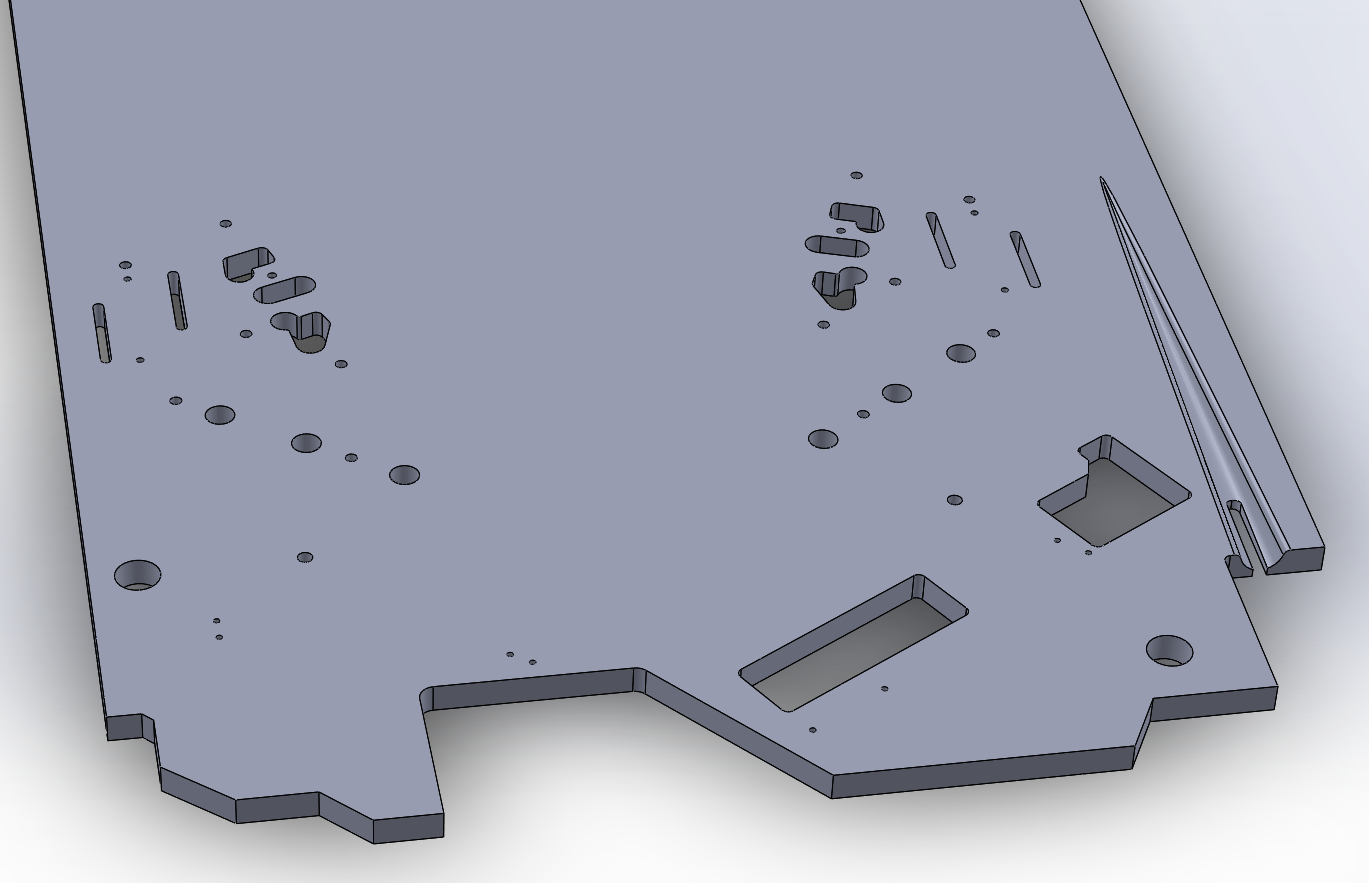

Stern playfield-3d.png Stern Modern Playfield Media:Stern_playfield.zip

Ball Guides

Image Description File
Ball-inlane-guide.png Ball Inlane Guide Media:Ball Inlane Guide (left) - 550-5037-01.dwg

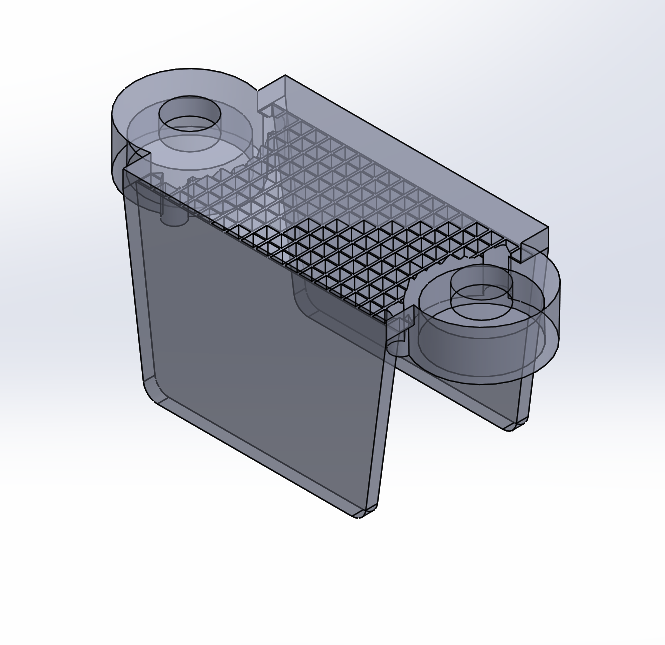

Ball-lane-guide-top.png Ball Lane Guide Top Double Sided (03-7034) and Star Posts (03-8319) w/5-16 in rubber Media:Ball Lane Guide Top Double Sided - 03-7034 - and Star Posts - 03-8319 w 5-16 in rubber.dwg

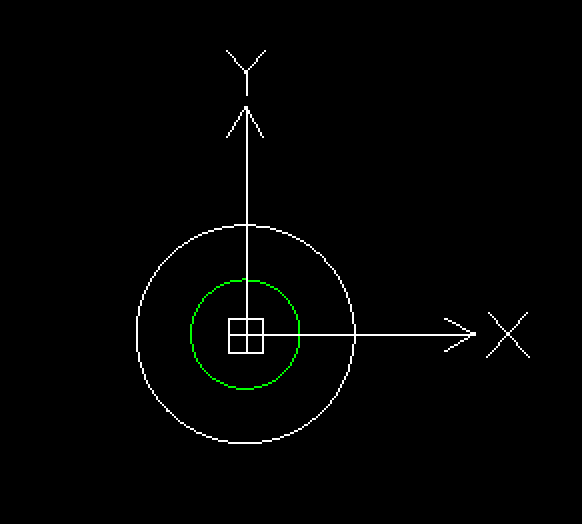

Metal-post-1-7-8.png Metal Post 1 7/8" (530-5005-00) with 7/16" OD Mini Post Rubber (23-6694-1) Media:Metal Post 1 7-8 in tall 530-5005-00 w 7-16 in OD Mini Post Rubber 23-6694-1.dwg

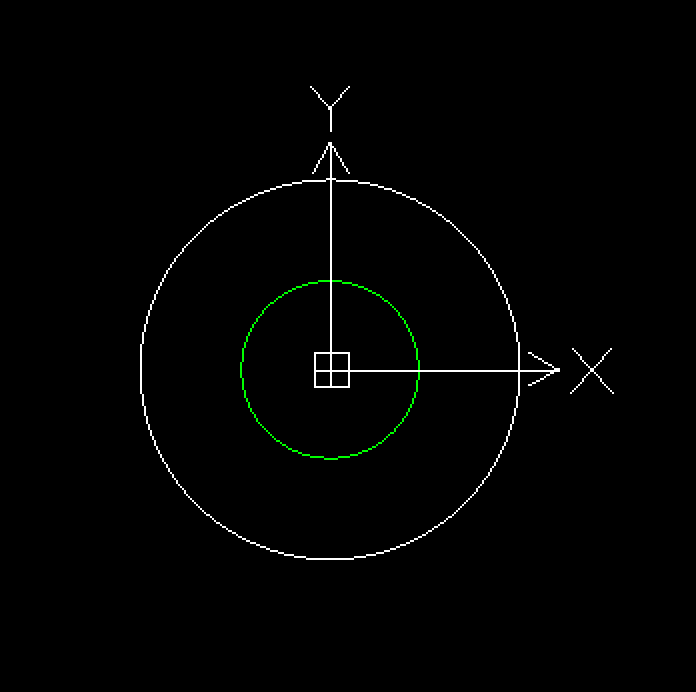

Metal-post-2-1-8.png Metal Post 2 1/8" (530-5332-01) with Bumper Post Sleeve 1 1/16" Media:Metal Post 2 1-8 in tall 530-5332-01 w Bumper Post Sleeve 1 1-16 in.dwg

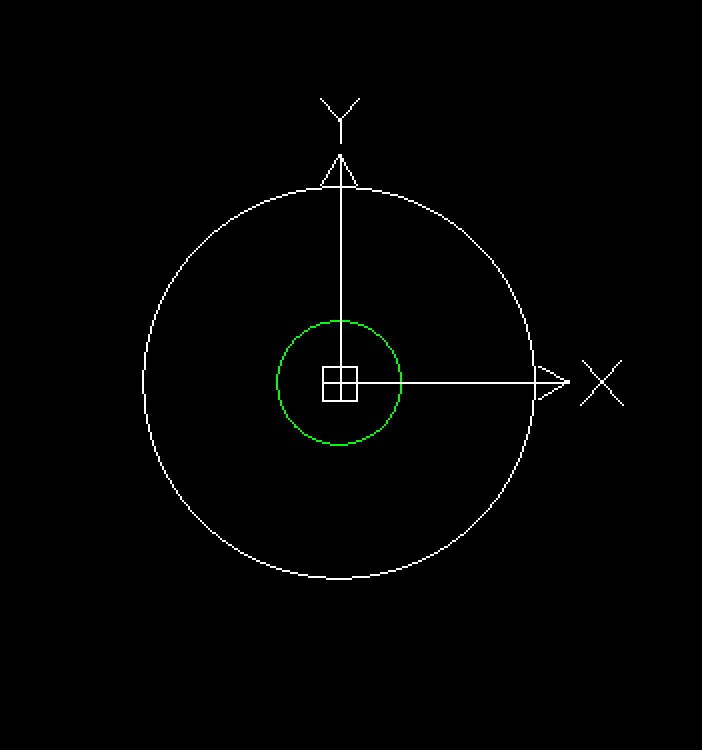

Plastic-post.png Narrow Plastic Post (03-8365) with 3/16" rubber Media:Narrow Plastic Post 03-8365 w 3-16 in rubber.dwg

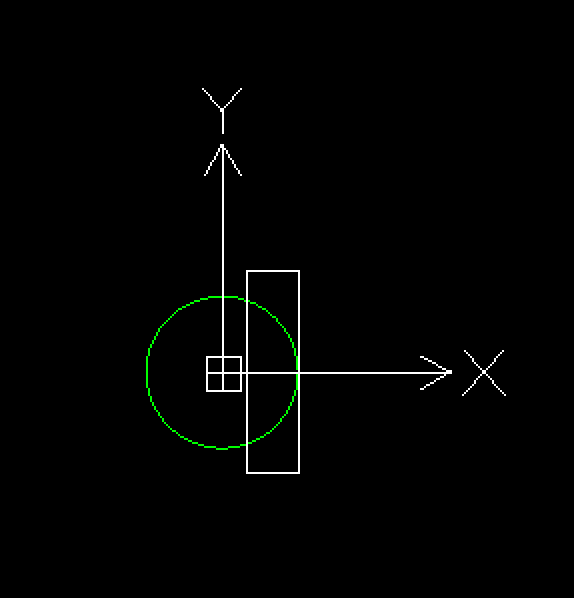

Spade-bolt.png Spade Bolt (Offset) Media:Spade Bolt (Offset).dwg

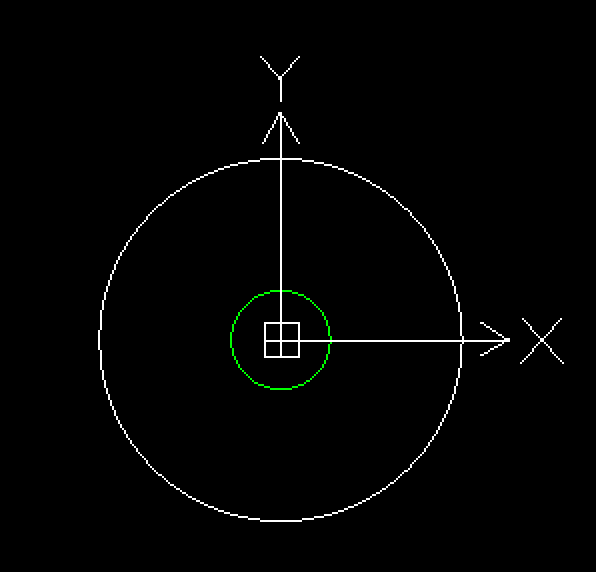

Star-post.png Star Post (03-8319) Media:Star Post - 03-8319.dwg

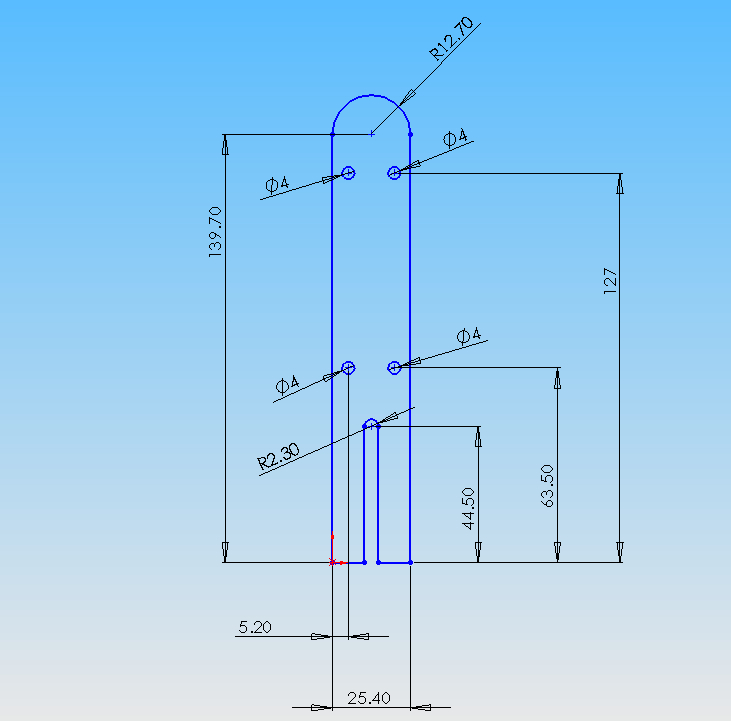

Shooter-lane.jpg Shooter Lane Insert Media:shooter-lane.dwg

Coil Assemblies

Image Description File
Ball-launcher.png Ball Launcher (500-5477-01) Media:Ball Launcher 500-5477-01.dwg

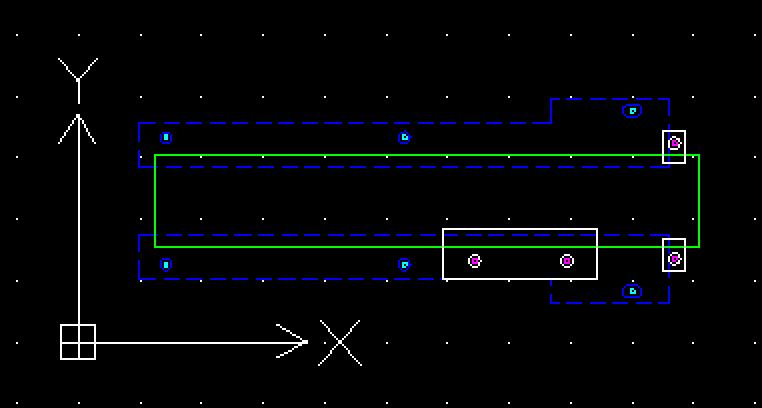

Ball-trough.png Ball Trough Assembly 4 Ball (500-6119-14) and Enter Exit Scoop (535-7329-01) Media:Ball Trough Assembly 4 Ball 500-6119-14 Enter Exit Scoop 535-7329-01.dwg

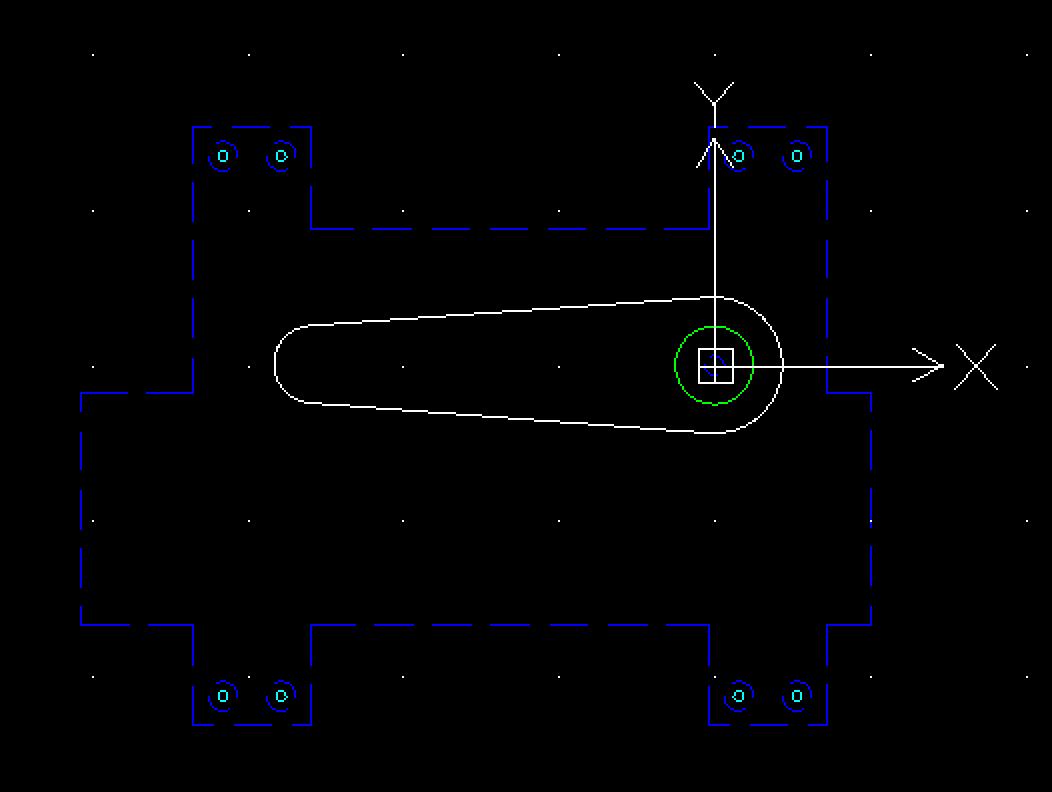

Flipper-left.png Flipper Assembly (A-15205) w/left mounted flipper Media:Flipper Assy - Williams A-15205 (Left).dwg
Flipper-right.png Flipper Assembly (A-15205) w/right mounted flipper Media:Flipper Assy - Williams A-15205 (Right).dwg

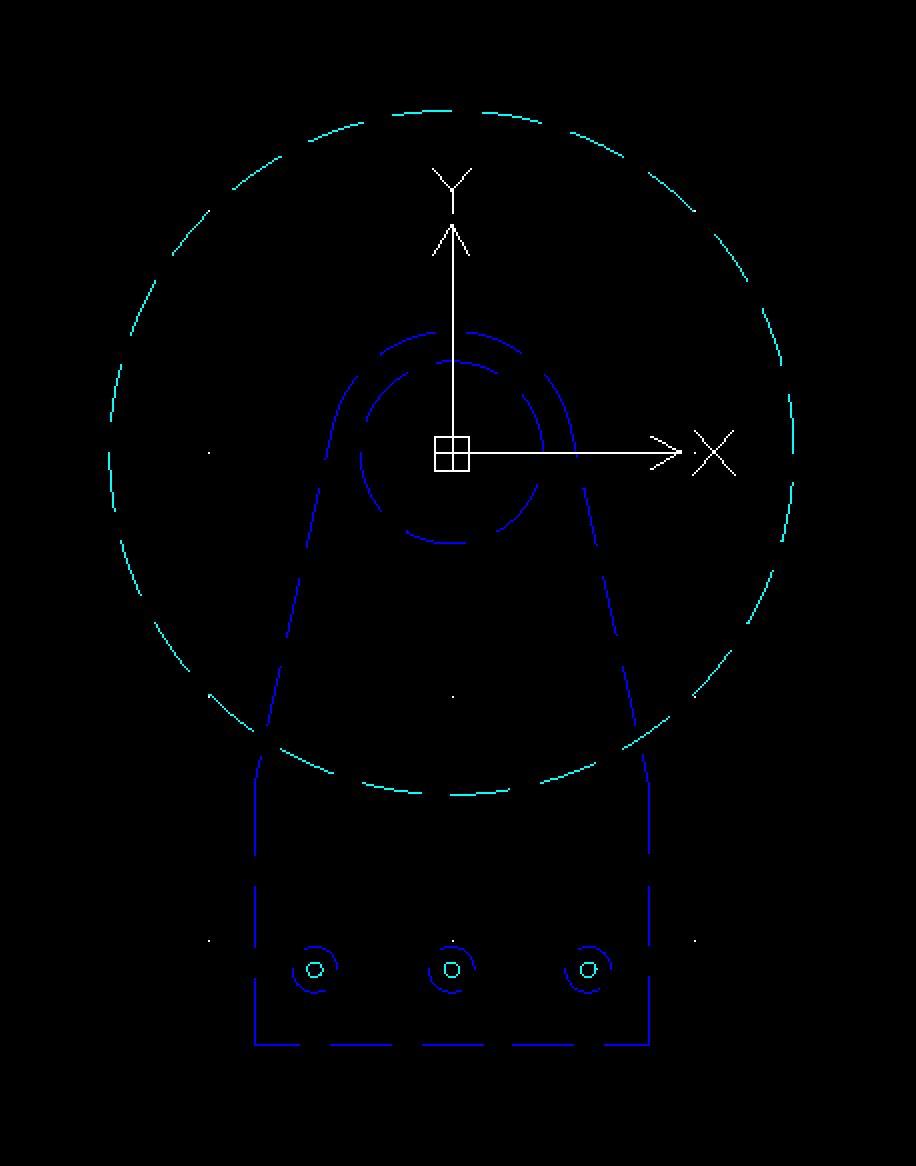

Magnet-1.png Magnet Bracket (A-15257) and Magnet Coil (20-9247) Media:Magnet Bracket A-15257 and Magnet Coil 20-9247.dwg

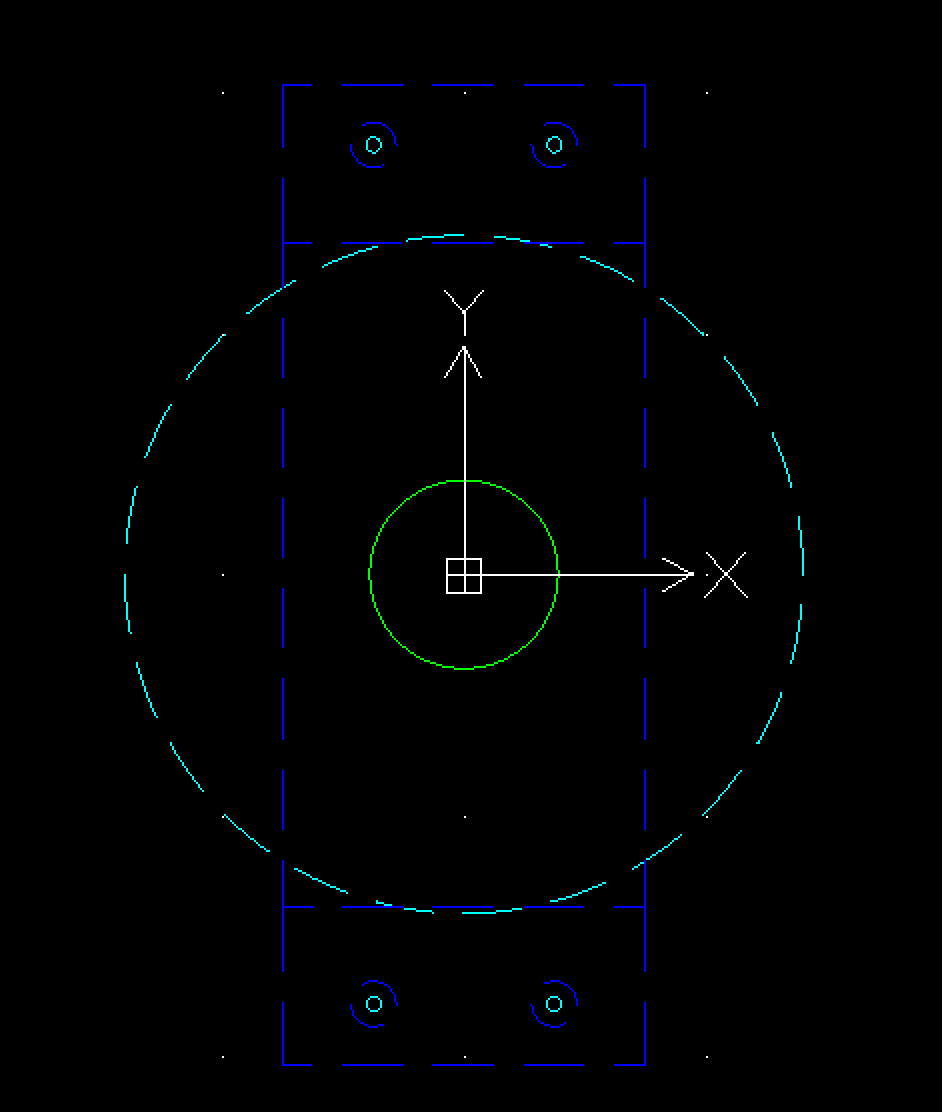

Magnet-2.png Threaded Core Weld Assembly (515-6141-01) and Magnet Coil (20-9247) Media:Threaded Core Weld Assembly 515-6141-01 and Magnet Coil 20-9247.dwg

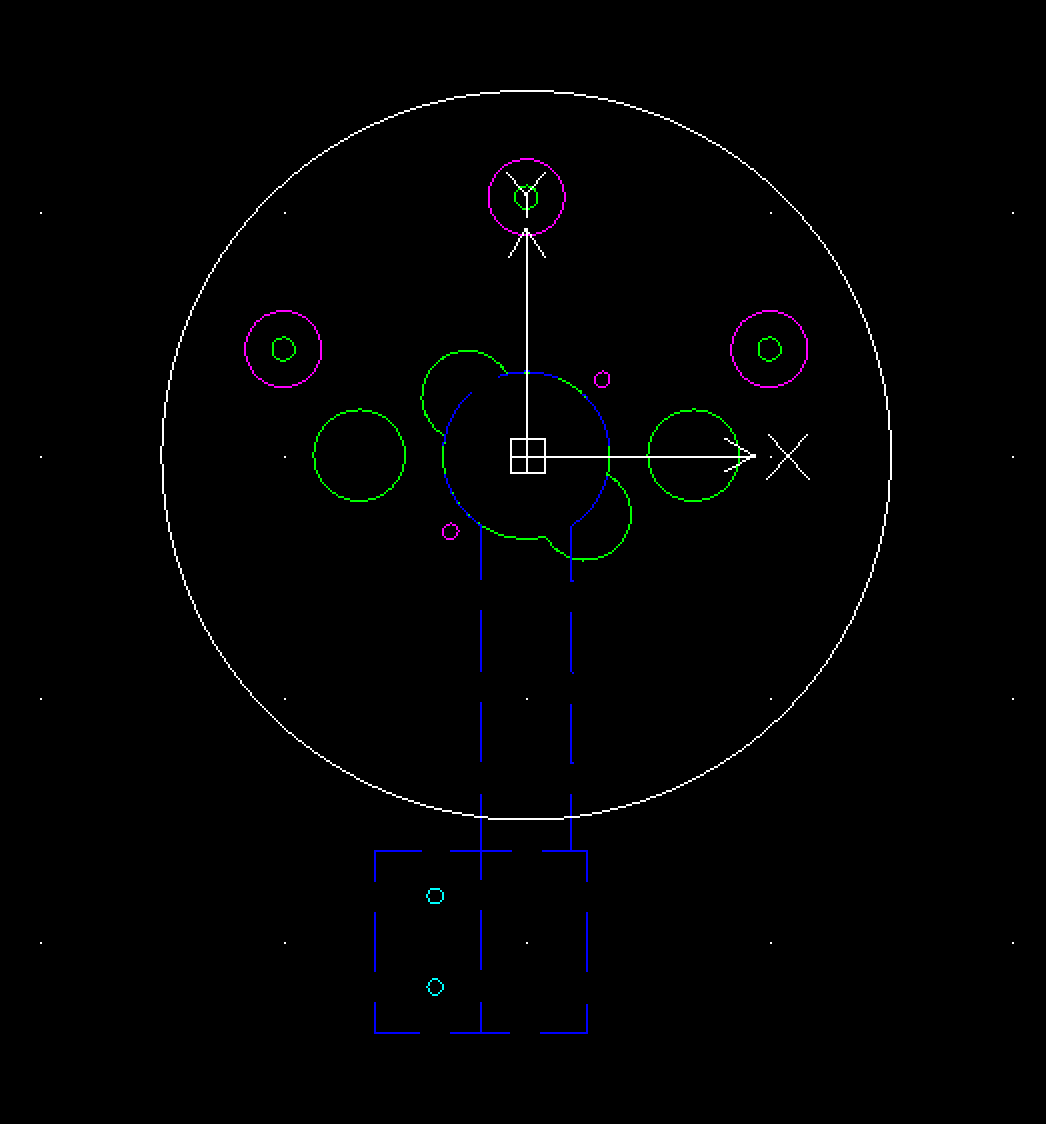

Pop-bumper.png Pop Bumper Assembly Williams Bally Media:Pop Bumper Assembly Williams Bally.dwg

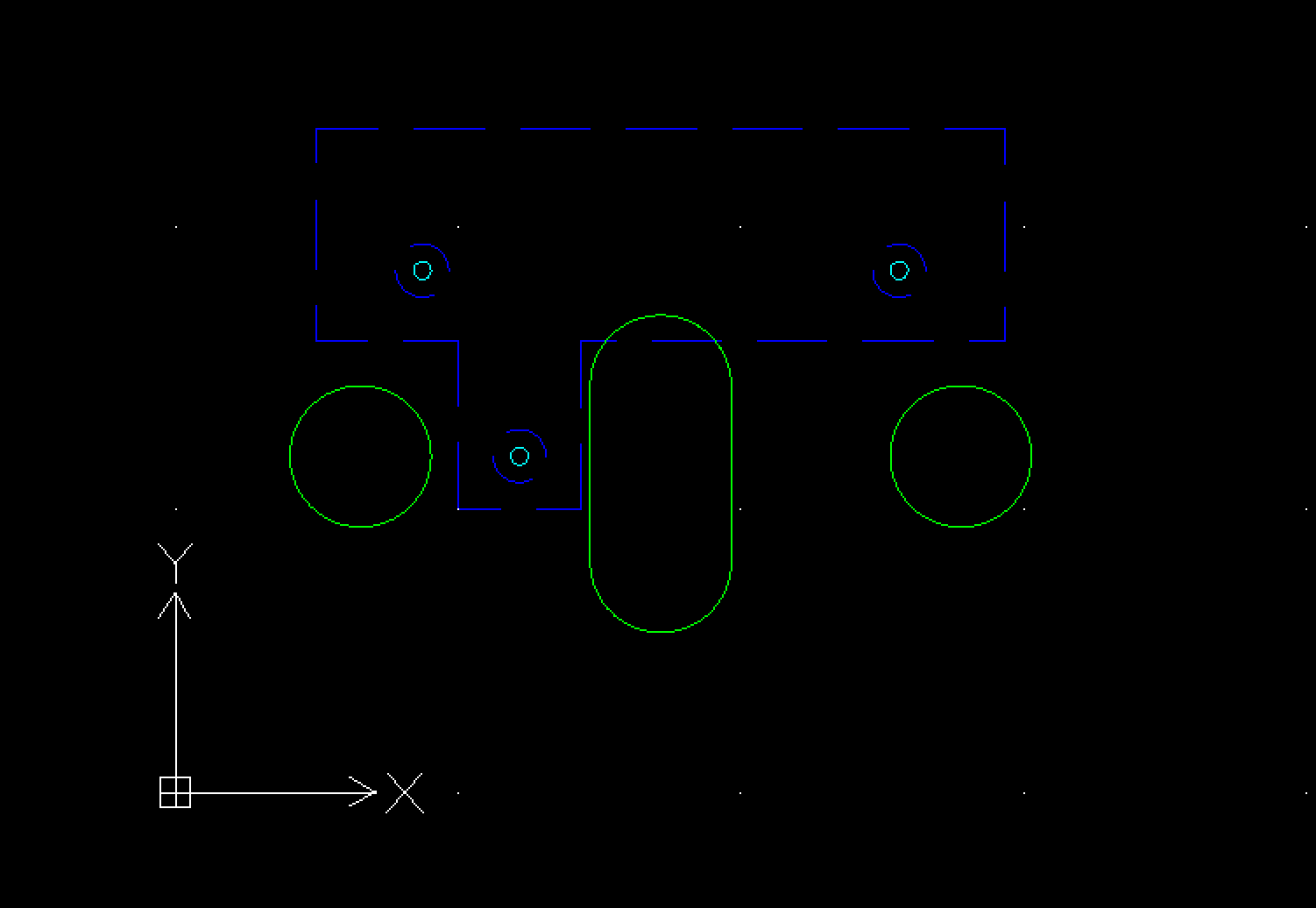

Slingshot-assembly.png Slingshot Assembly (500-5849-00) Media:Slingshot Assembly - 500-5849-00.dwg

Inserts

Image Description File

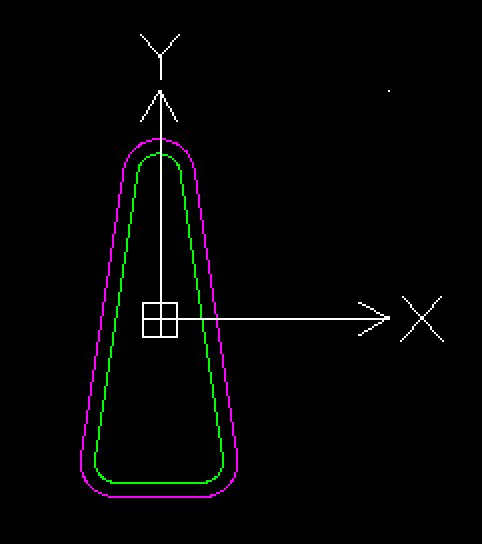

Insert-1-1-2.png Insert 1 1/2" Arrow Media:Insert_1_1-2_in_Arrow.dwg

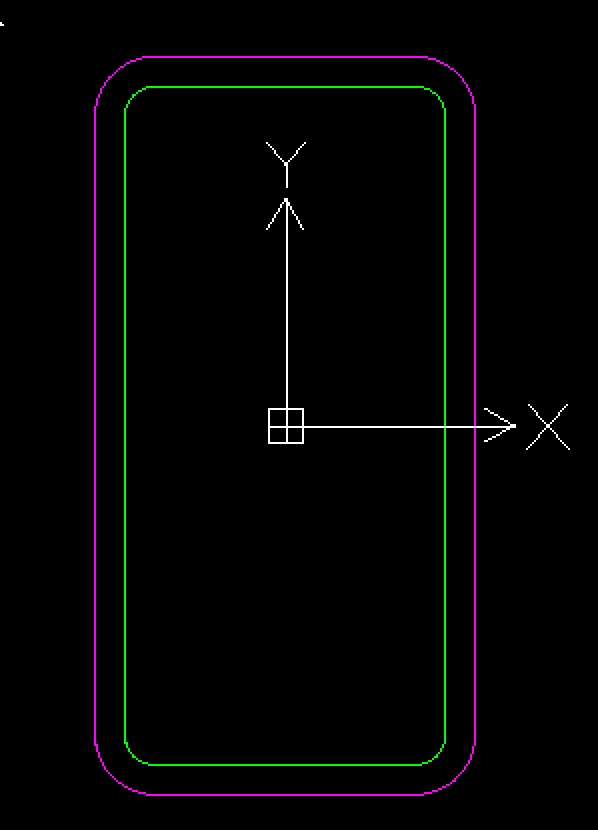

Insert-1-1-2-r.png Insert 1 1/2" Rectangle Media:Insert_1_1-2_in_Rectangle.dwg

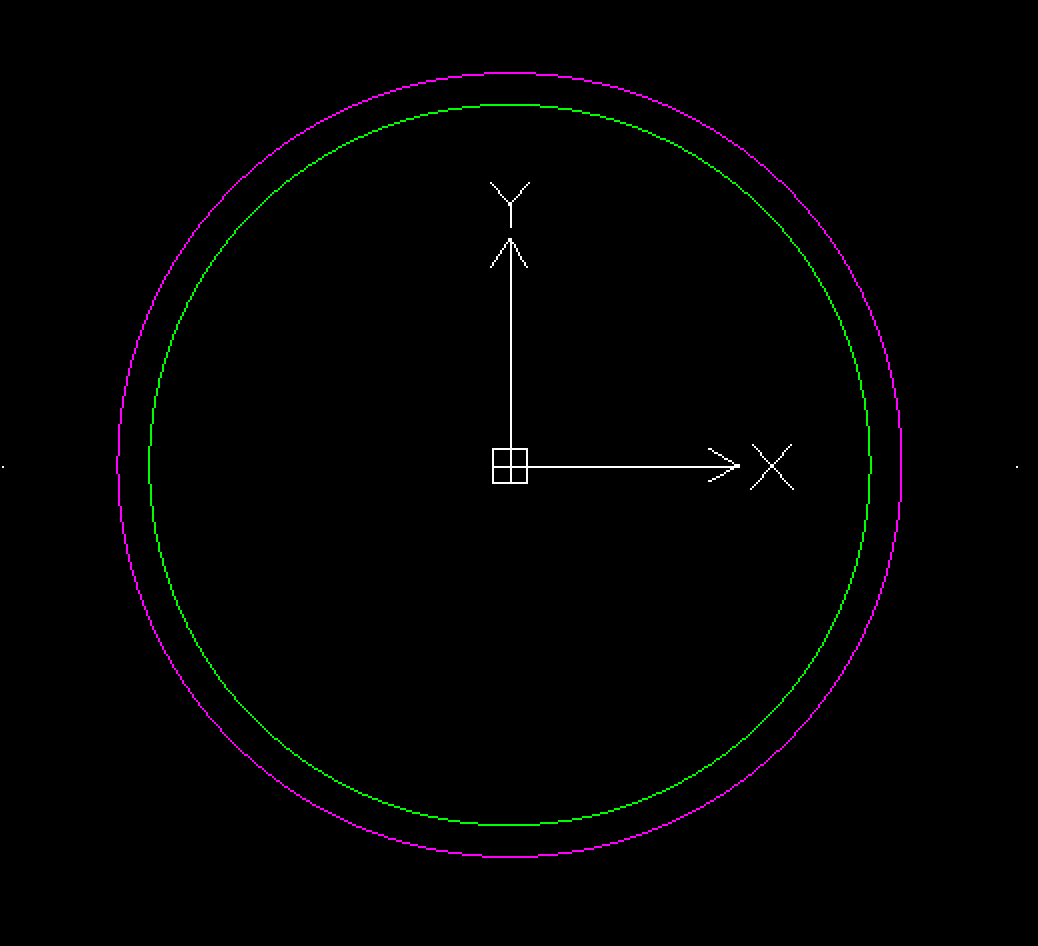

Insert-1-1-2-ro.png Insert 1 1/2" Round Media:Insert_1_1-2_in_Round.dwg

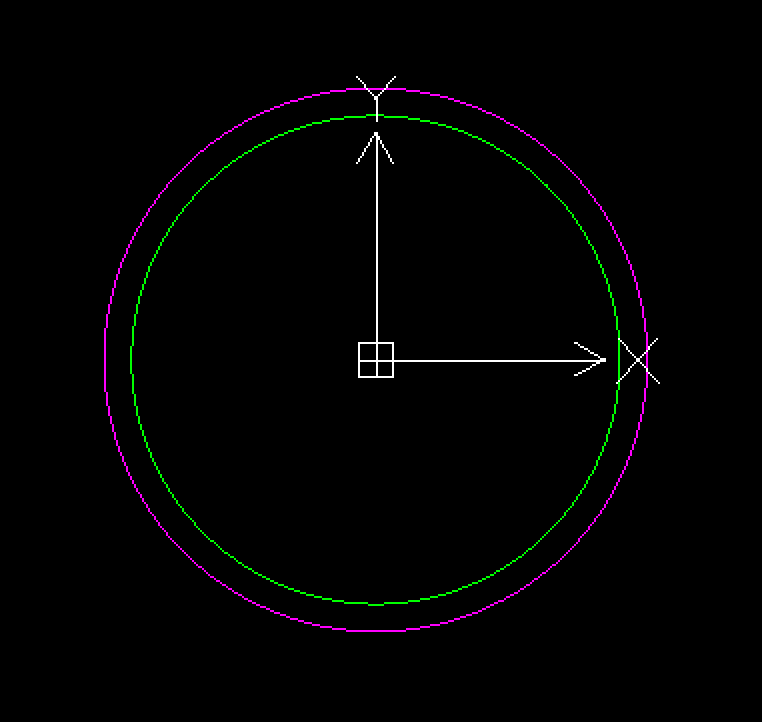

Insert-1-3-16-r.png Insert 1 3/16" Round Media:Insert_1_3-16_in_Round.dwg

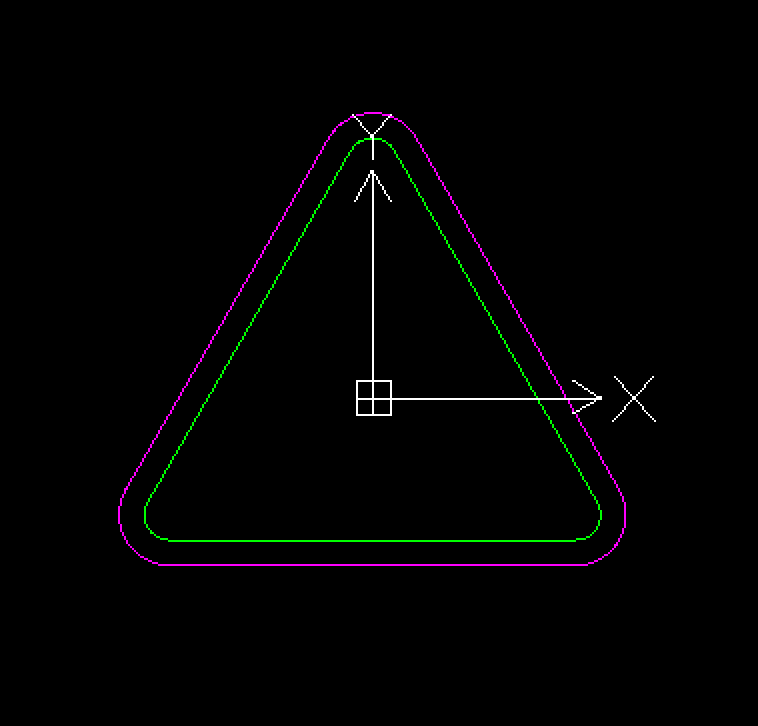

Insert-1-3-16-t.png Insert 1 3/16" Triangle Media:Insert_1_3-16_in_Triangle.dwg

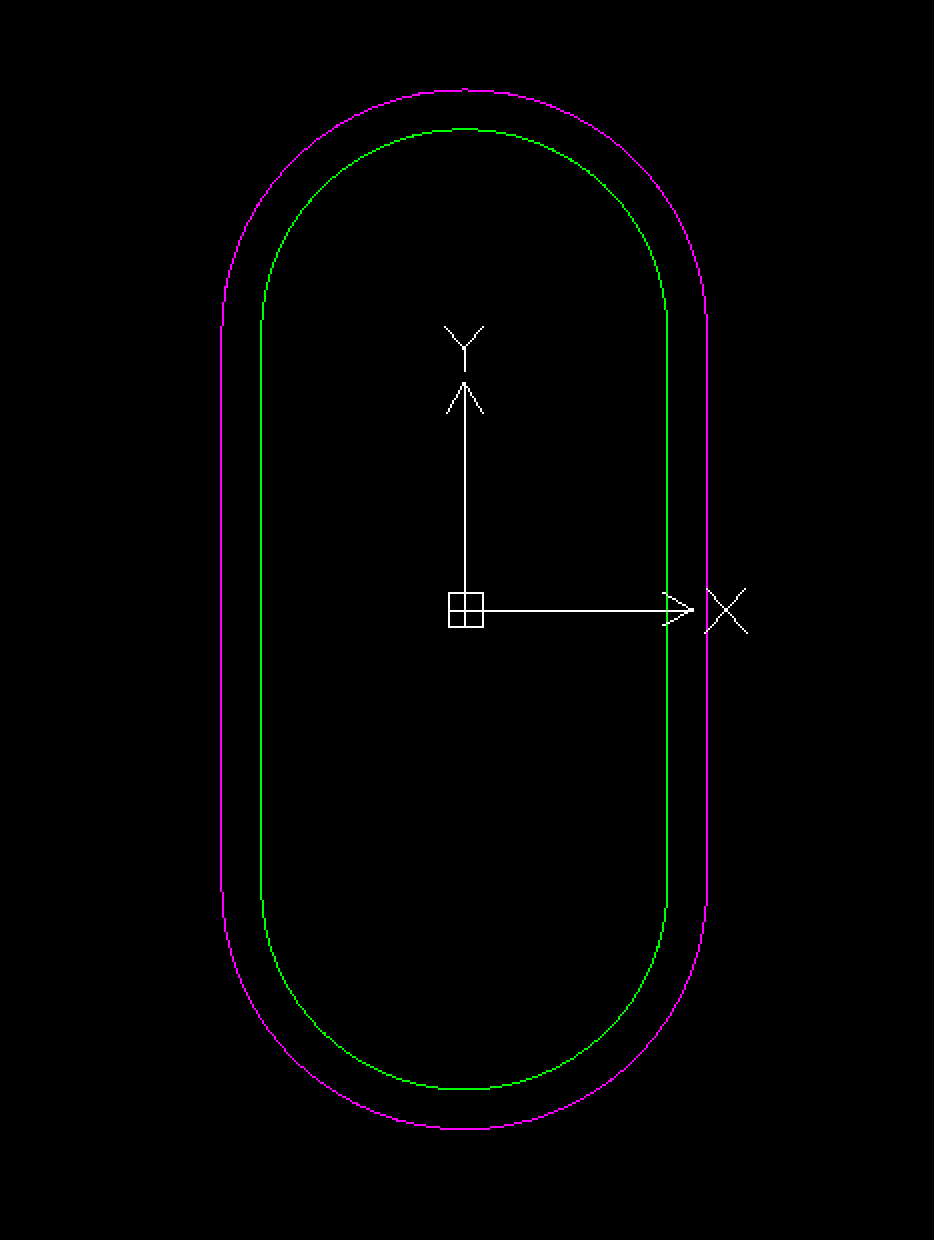

Insert-1-5-8.png Insert 1 5/8" Oval Media:Insert_1_5-8_in_Oval.dwg

Lights

Image Description File

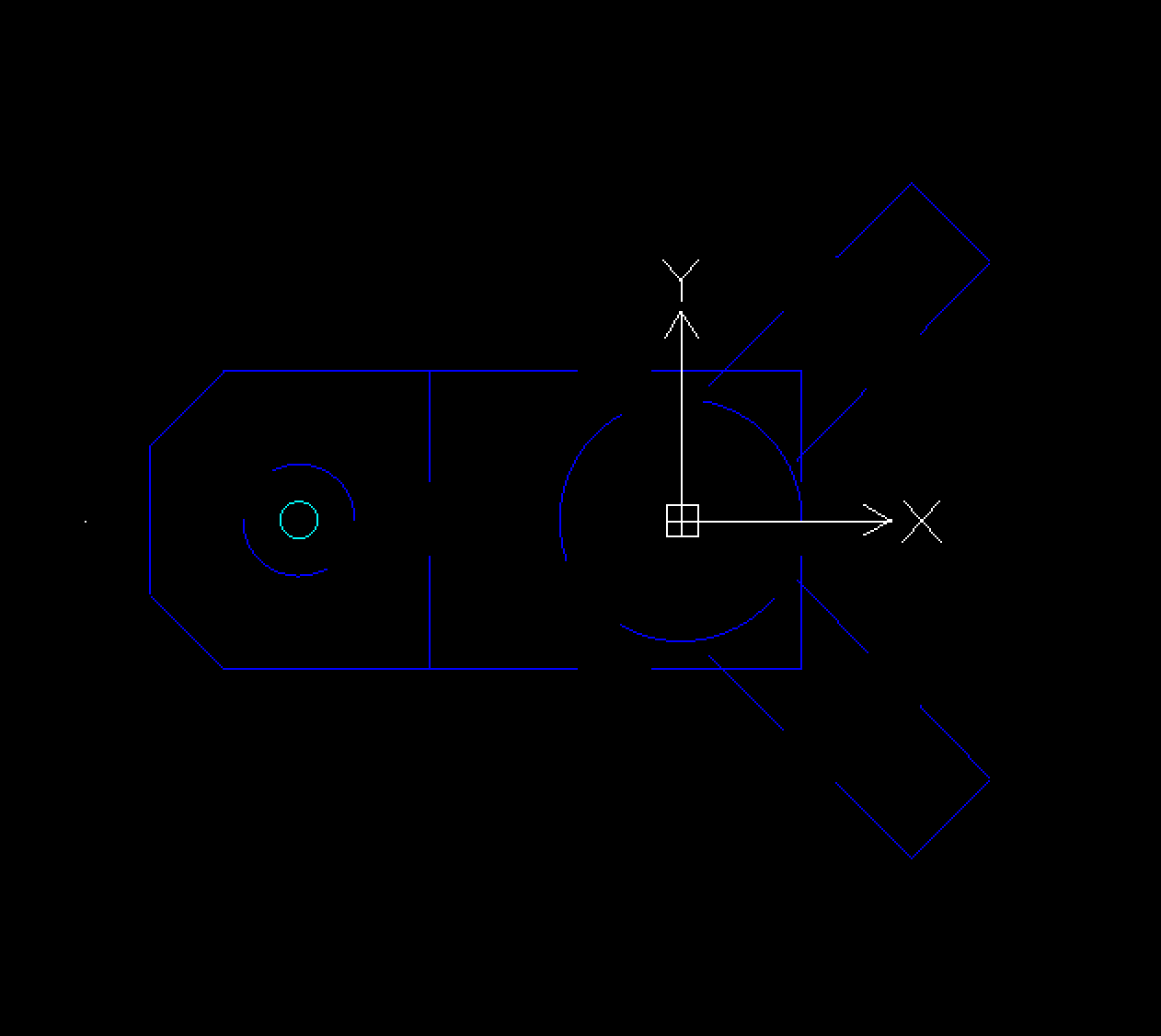

Socket-l.png 44 Socket Under Playfield Long (077-5005-00) Media:Socket Under Playfield Long 077-5005-00.dwg

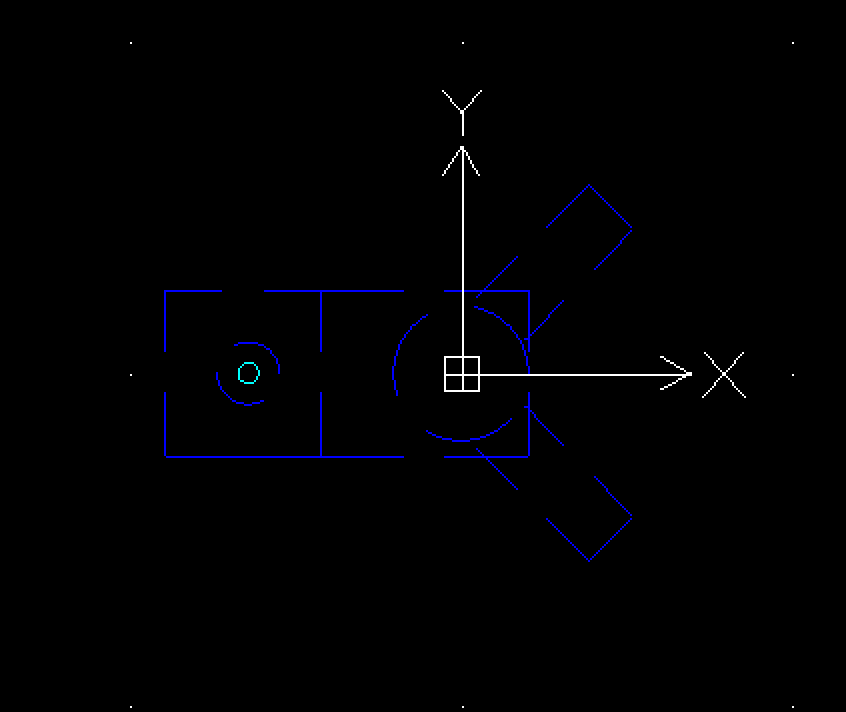

Socket-s-1.png 44 Socket Under Playfield Short (077-5002-00) Media:Socket Under Playfield Short 077-5002-00.dwg

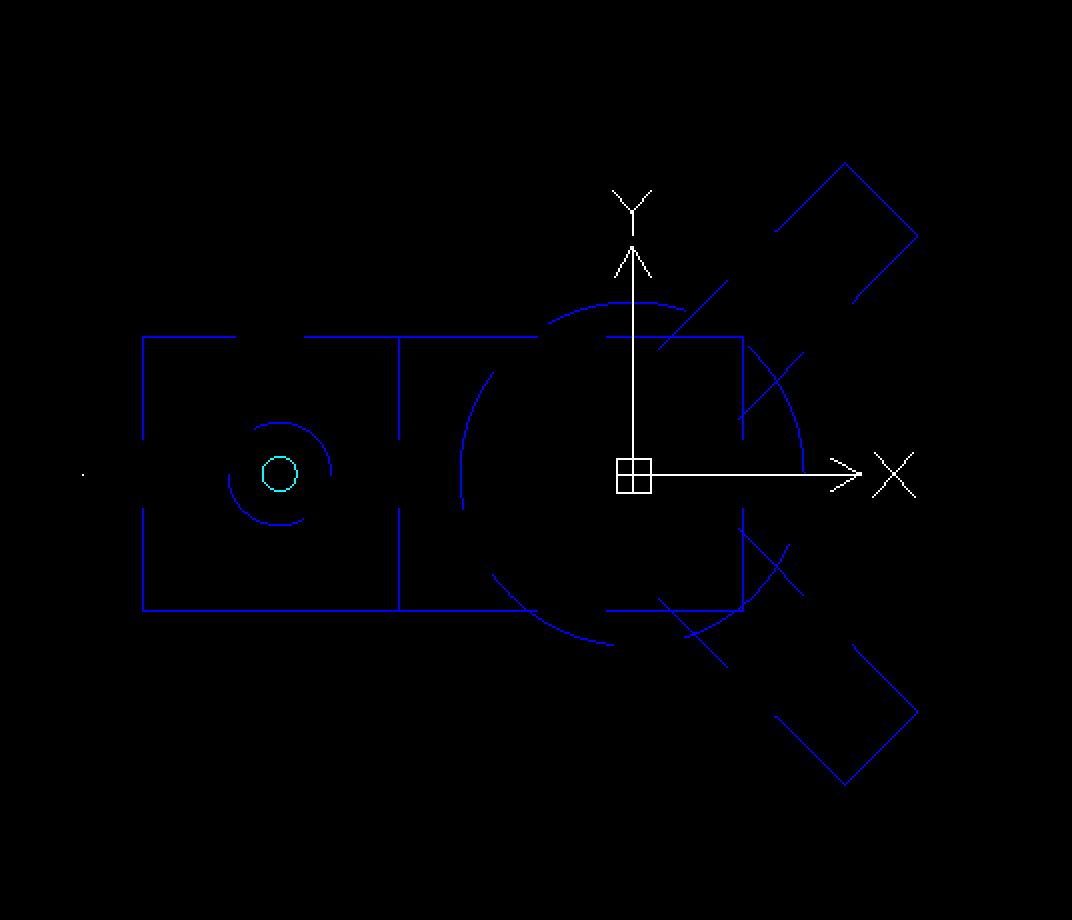

Socket-s-2.png 89 Socket Under Playfield Short (077-5101-00) Media:Socket Under Playfield Short 077-5101-00.dwg

Switches

Image Description File

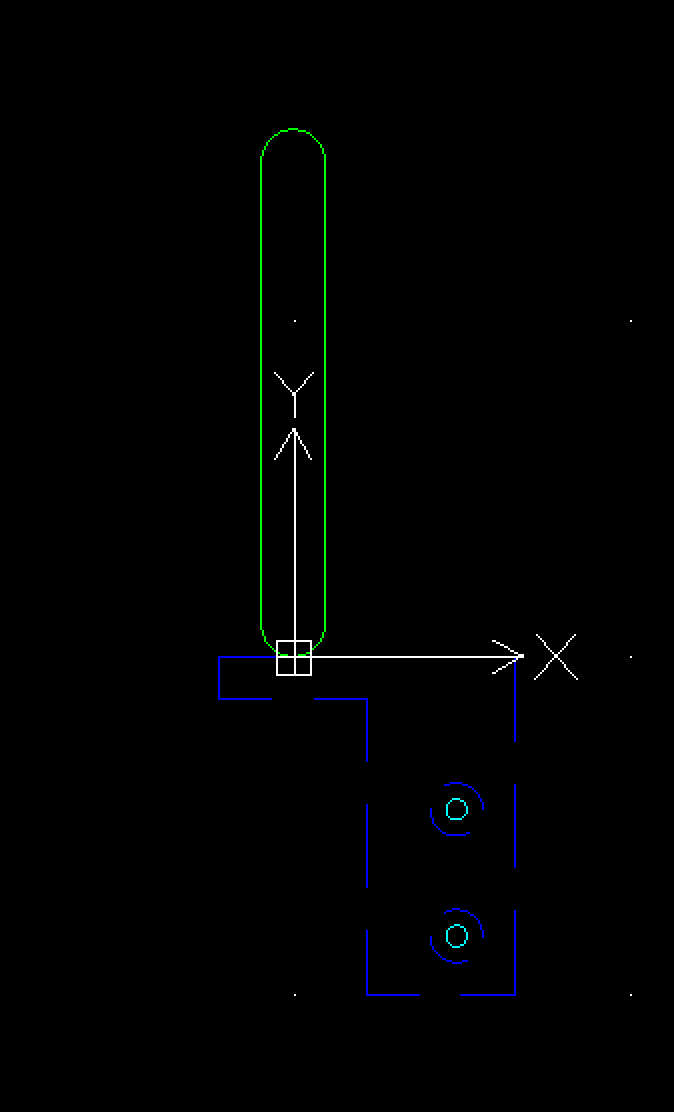

Switch.png Rollover Switch and Bracket (A-12688) Media:Rollover Switch and Bracket A-12688.dwg

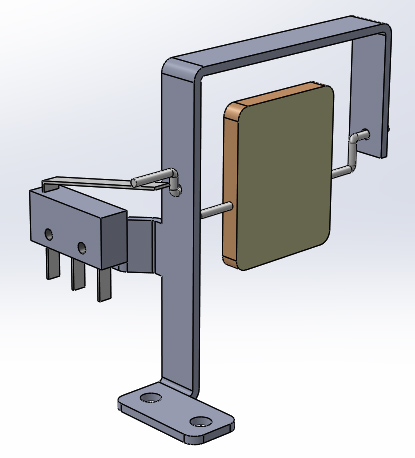

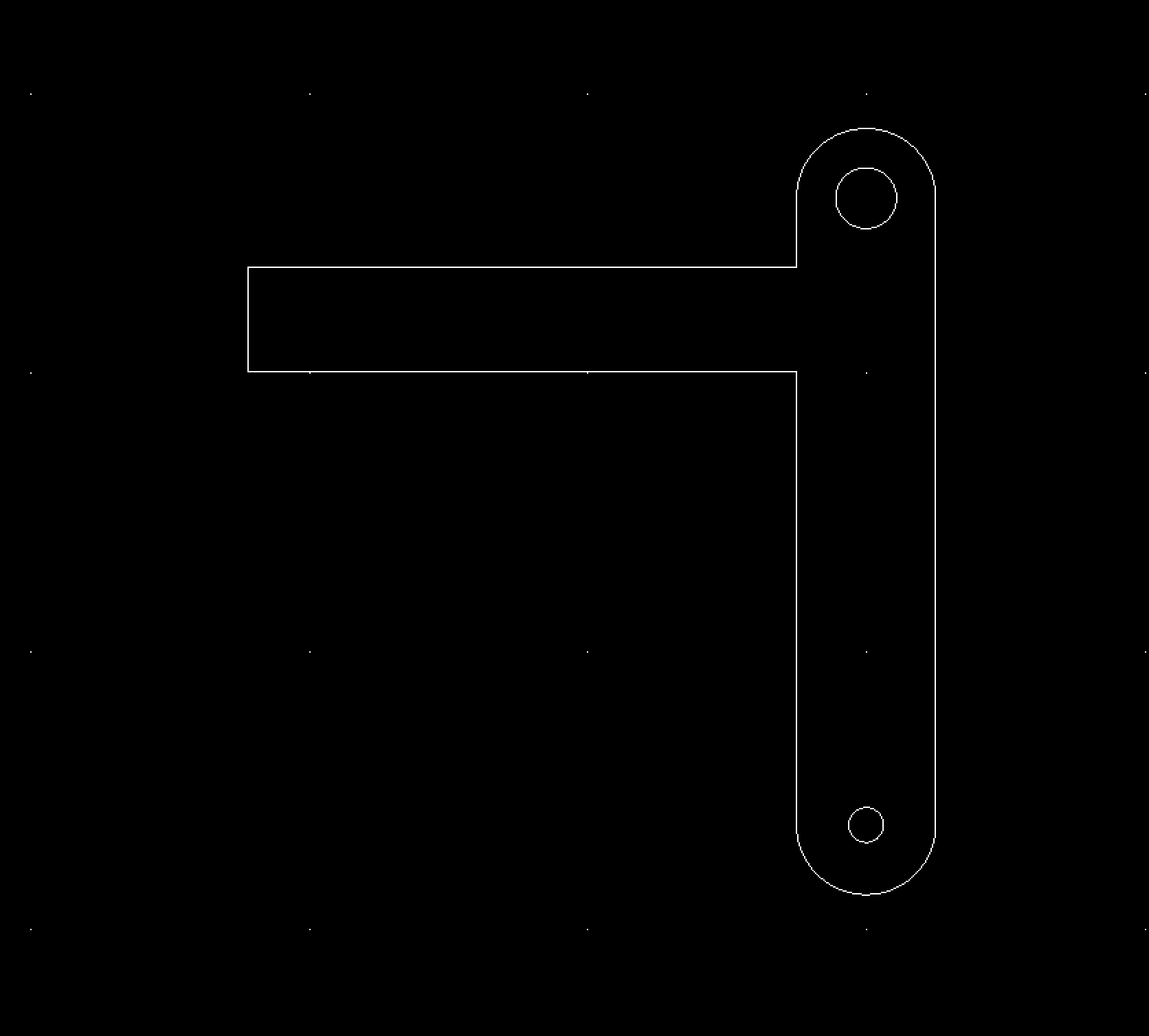

Spinner-assembly.png Spinner Assembly (A-21801-2) Media:Spinner Assembly A-21801-2.dwg

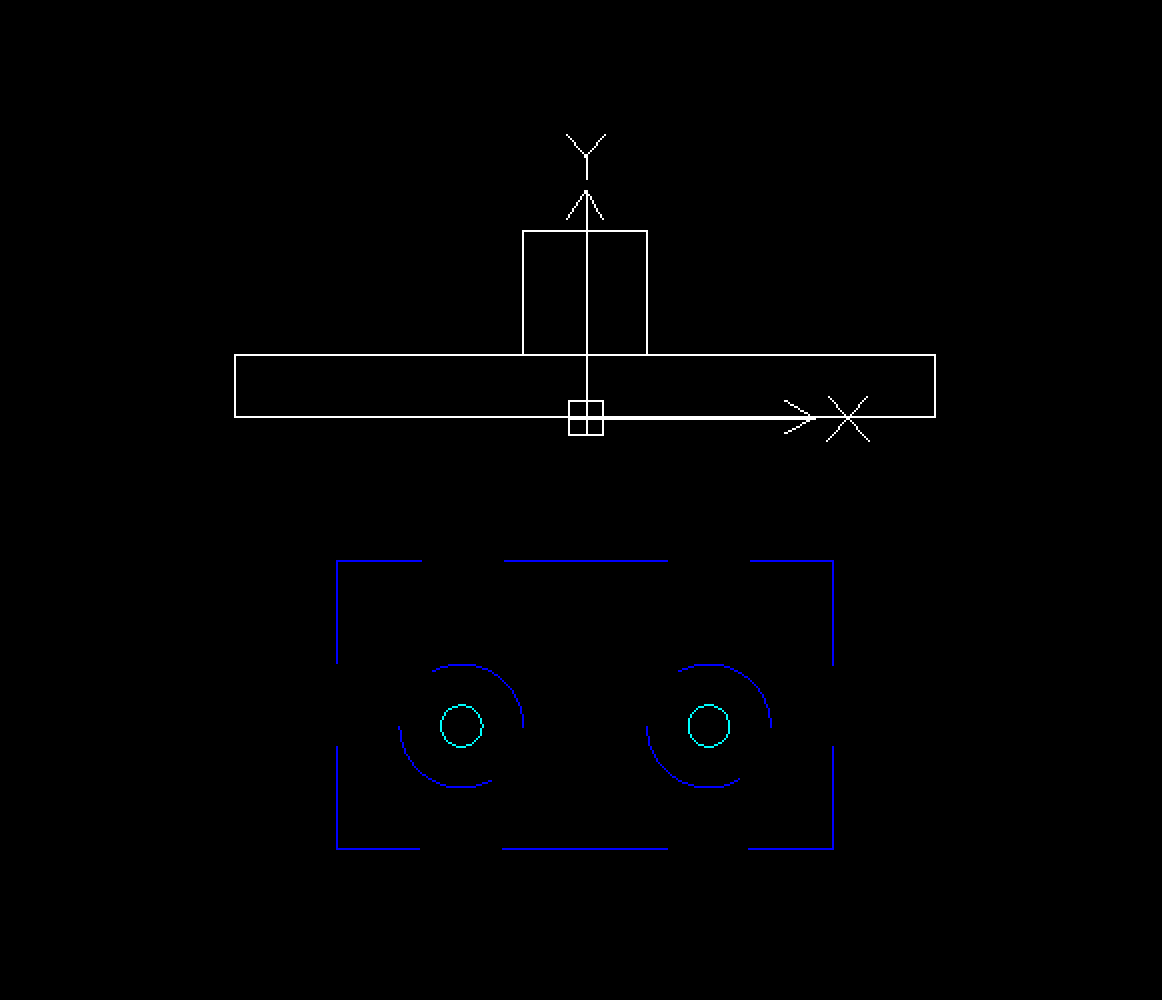

Standup-target.png Stand Up Target Rectangle 1 1/16" (B-12001-4) Media:Stand Up Target Rectangle 1 1-16 in - B-12001-4.dwg

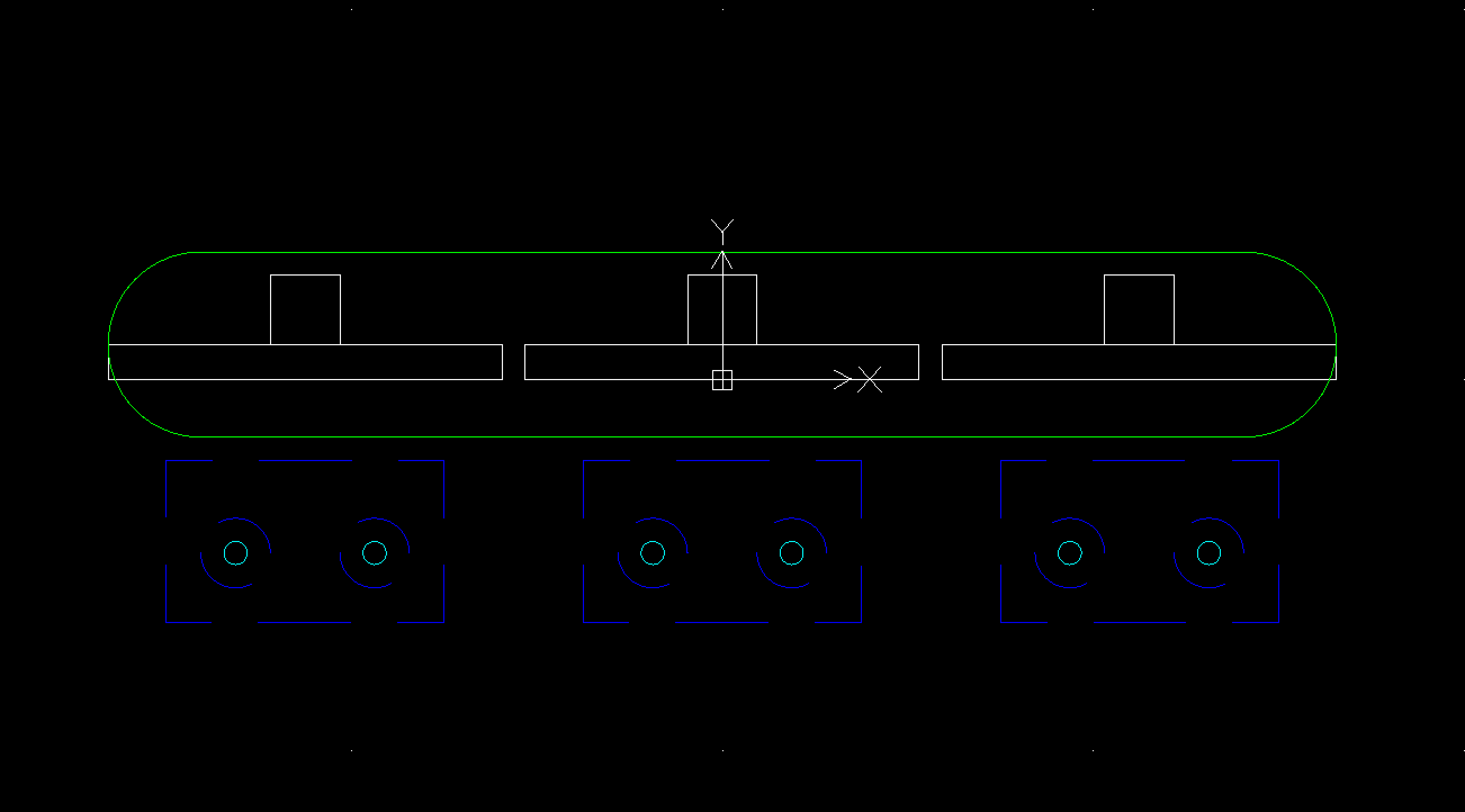

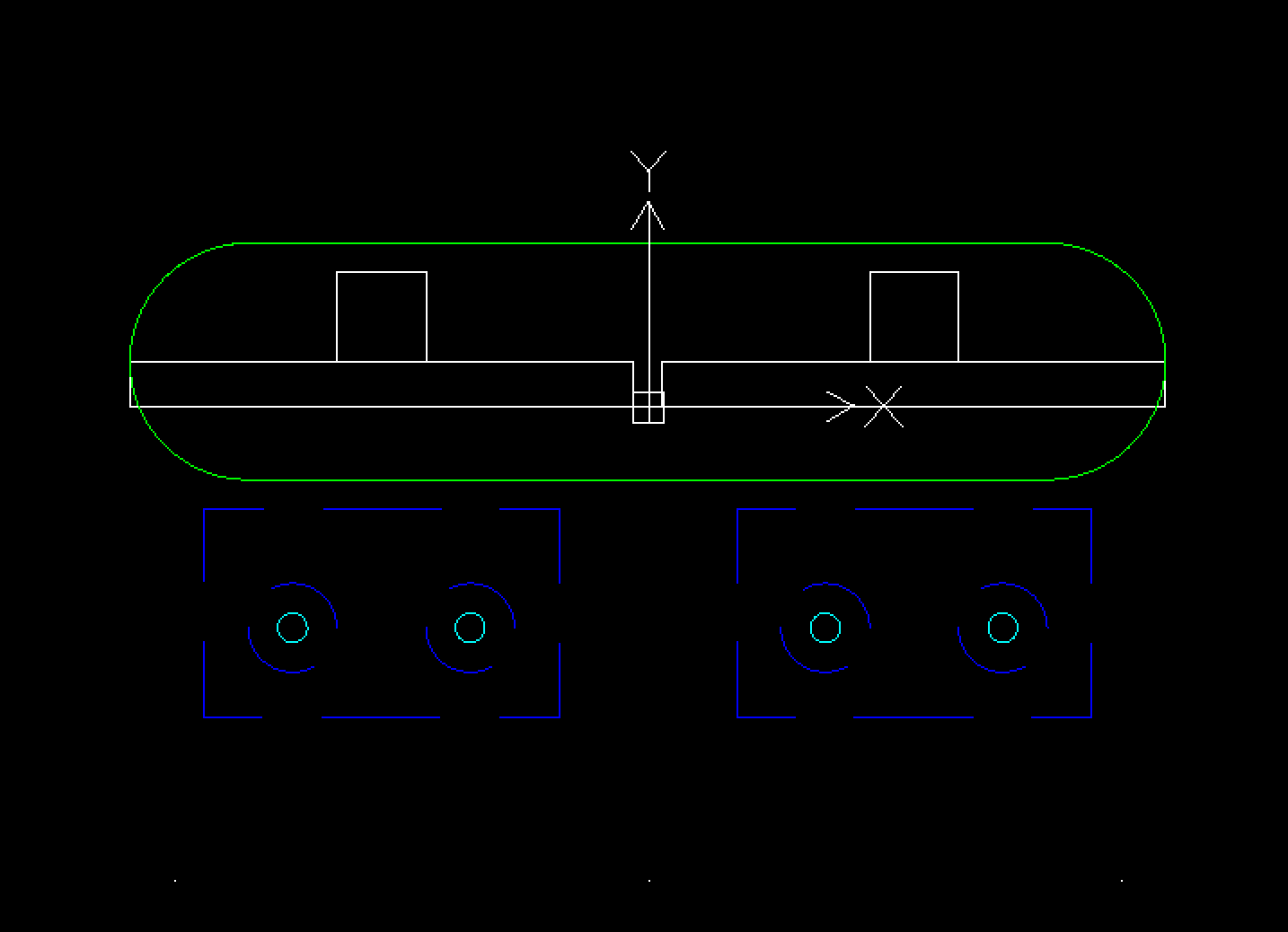

Standup-target-2.png Stand Up Target Rectangle 1 1/16" (B-12001-4) Bank of 2 Media:Stand Up Target Rectangle 1 1-16 in - B-12001-4 (Bank of 2).dwg
Standup-target-3.png Stand Up Target Rectangle 1 1/16" (B-12001-4) Bank of 3 Media:Stand Up Target Rectangle 1 1-16 in - B-12001-4 (Bank of 3).dwg

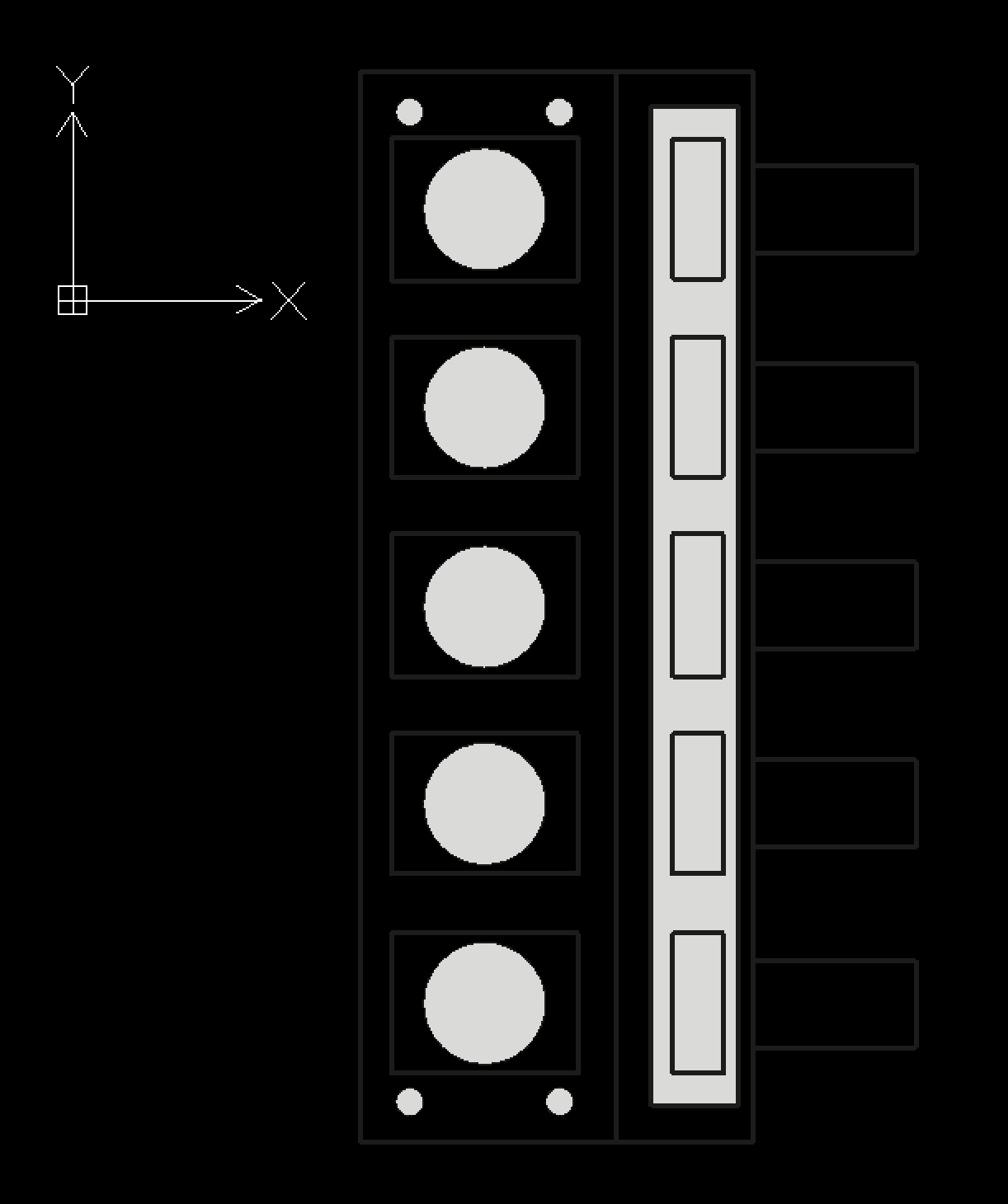

5-target-bank.png Drop Target Bank of 5 Media:Drop Target Bank of 5.dwg

3D templates

Image Description File

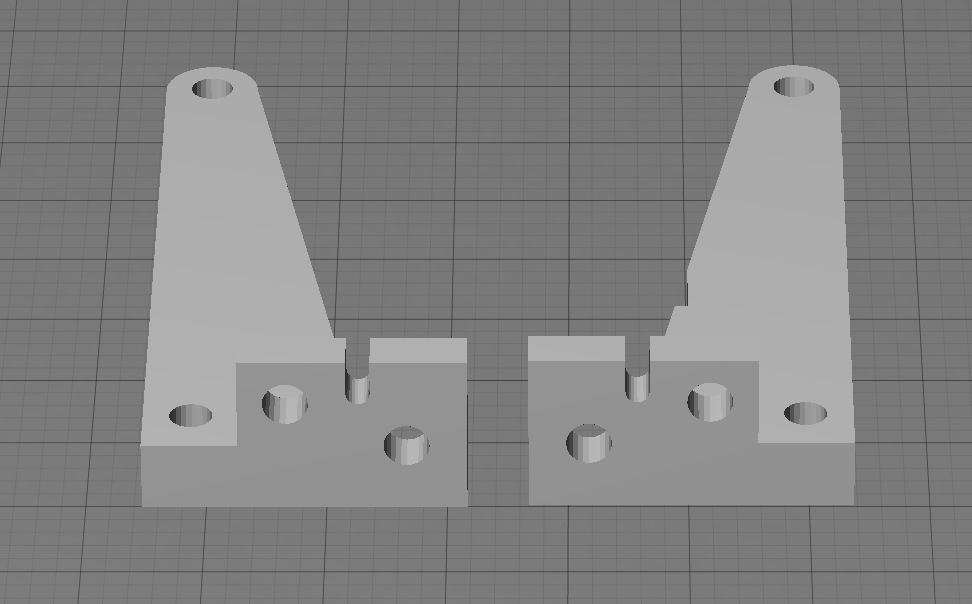

P3-mount-lr.png General P3-ROC Mounting Brackets - L/R (Coleman Martin) File:P3-mount-left.stl / File:P3-mount-right.stl

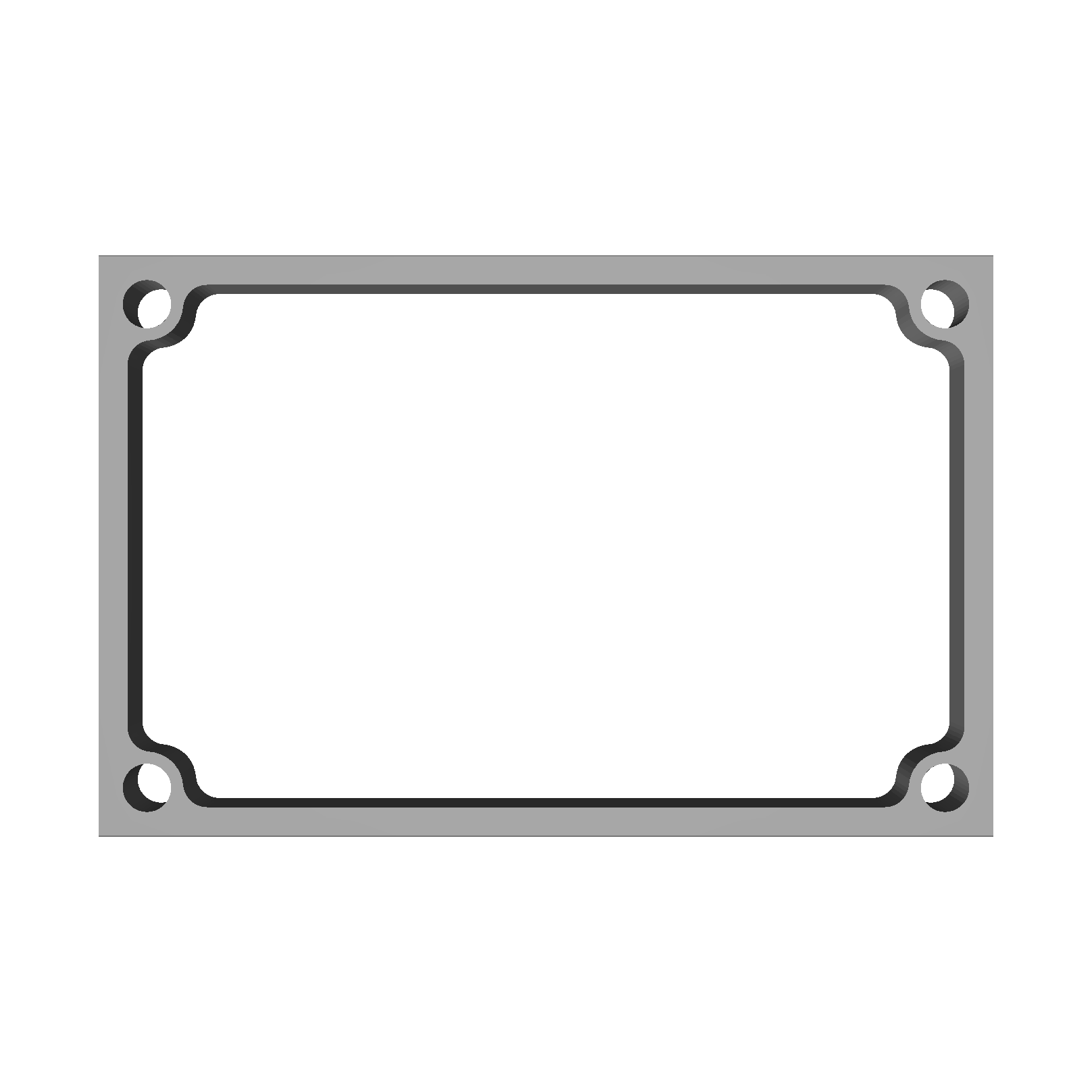

Cssc-spacer.png Computer Startup Shutdown Controller Bracket (Scott Danesi) File:Cssc-spacer.stl

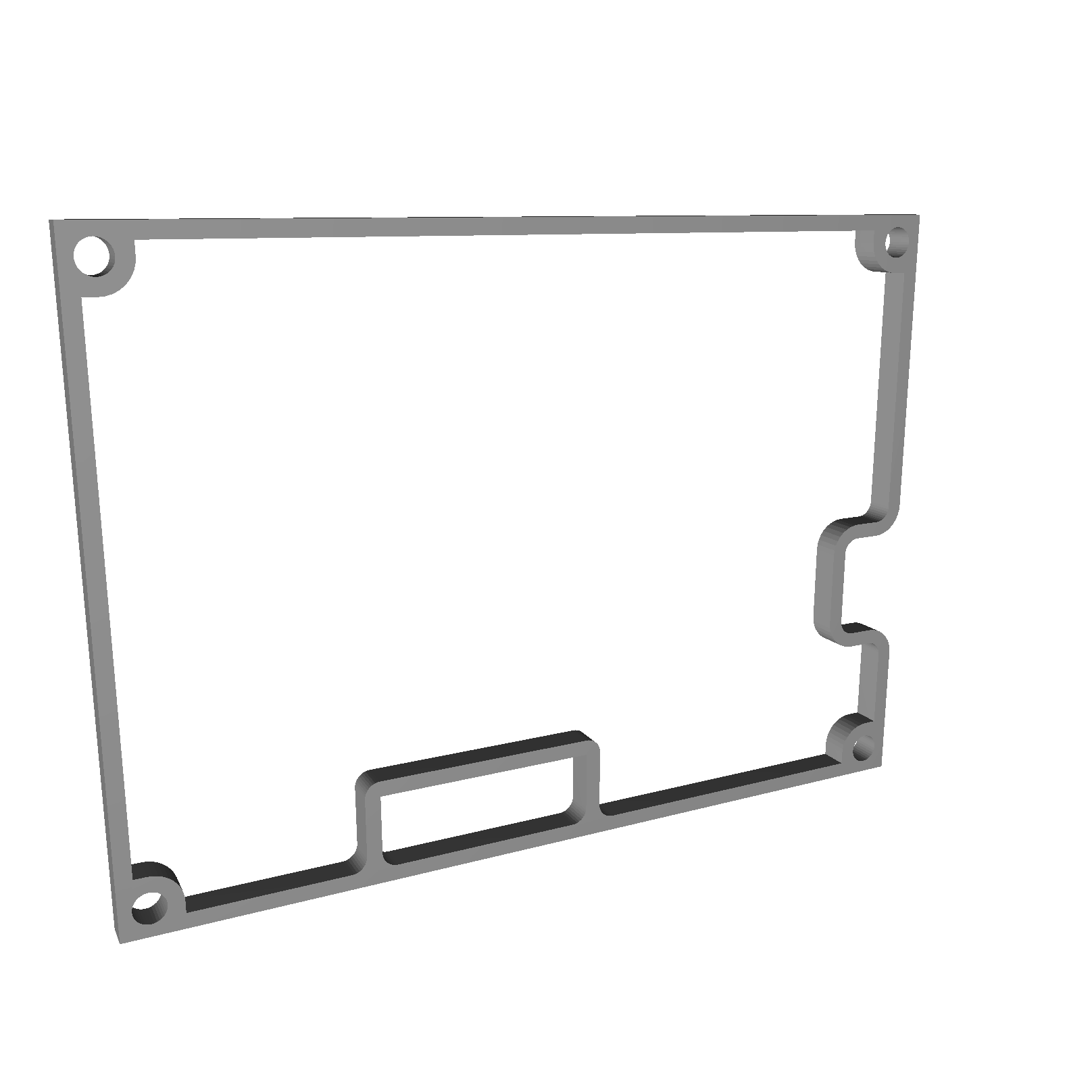

P3roc-spacer.png P3-ROC Mounting Bracket (Scott Danesi) File:P3rocspacer.stl

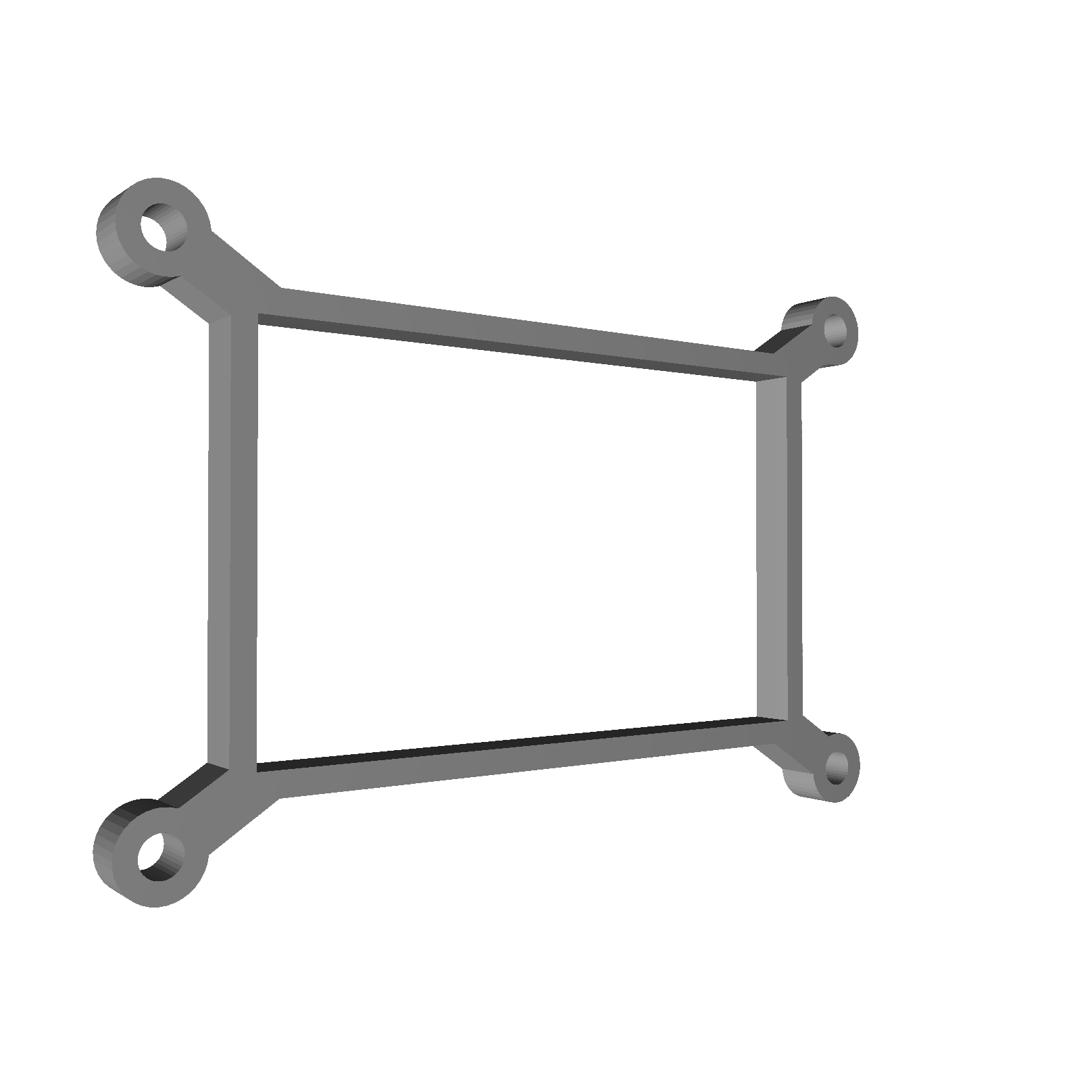

Sw16-spacer.png SW16 Mounting Bracket (Scott Danesi) File:Sw16spacer.stl

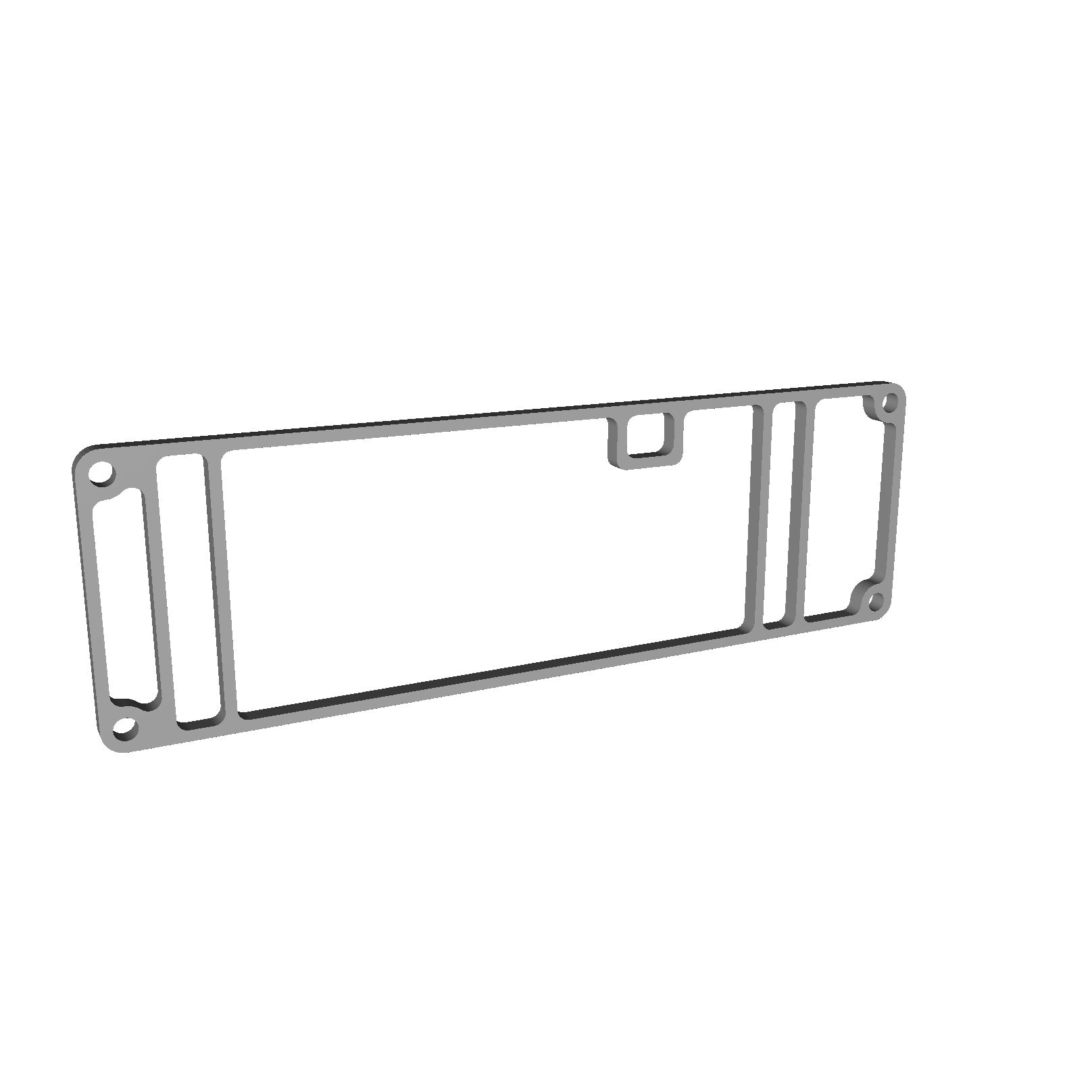

Pd16-spacer.png PD16 Mounting Bracket (Scott Danesi) File:Pd16spacer.stl

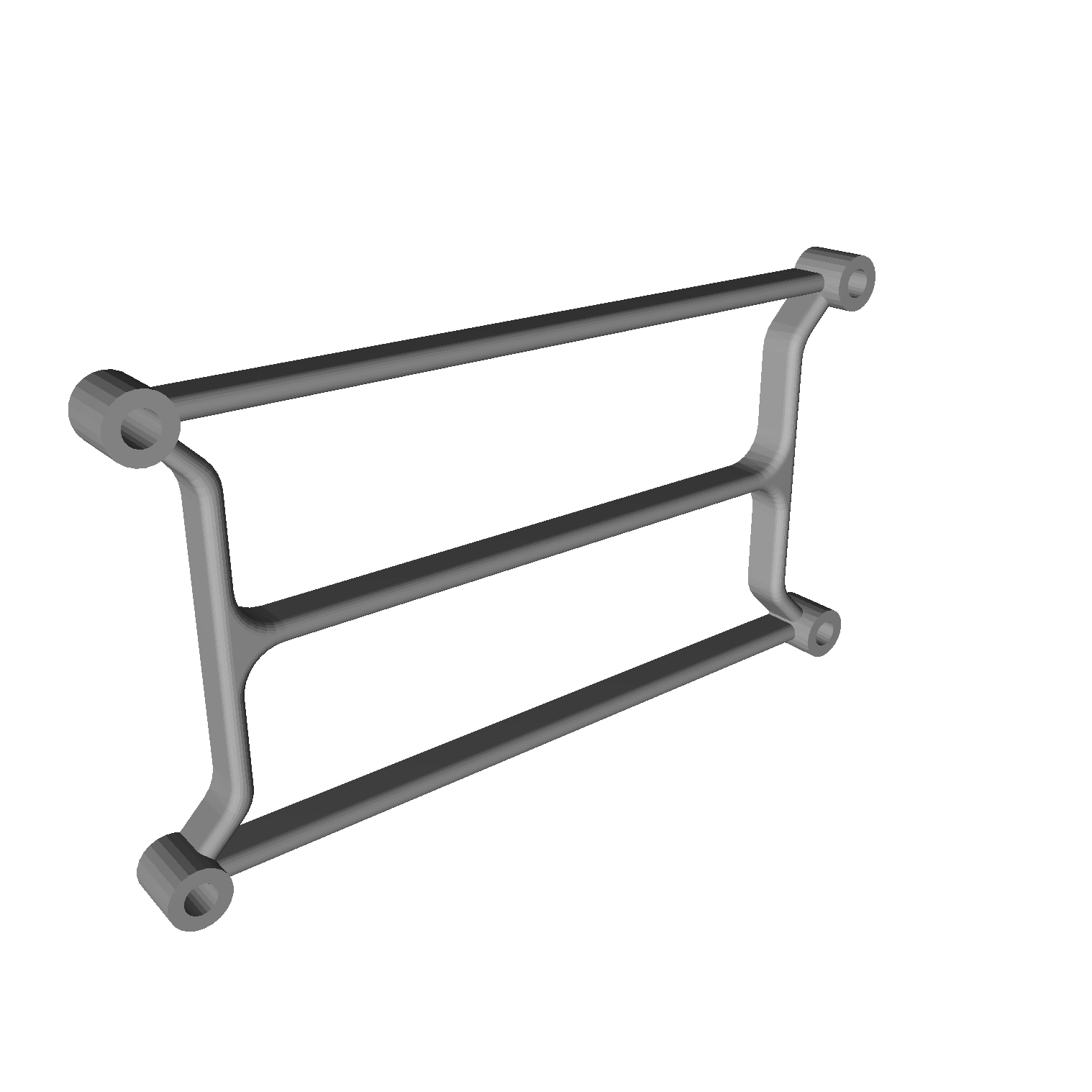

Pd-led-spacer.png PD-LED Mounting Bracket - Horizontal (Scott Danesi) File:Pd-ledspacer.stl

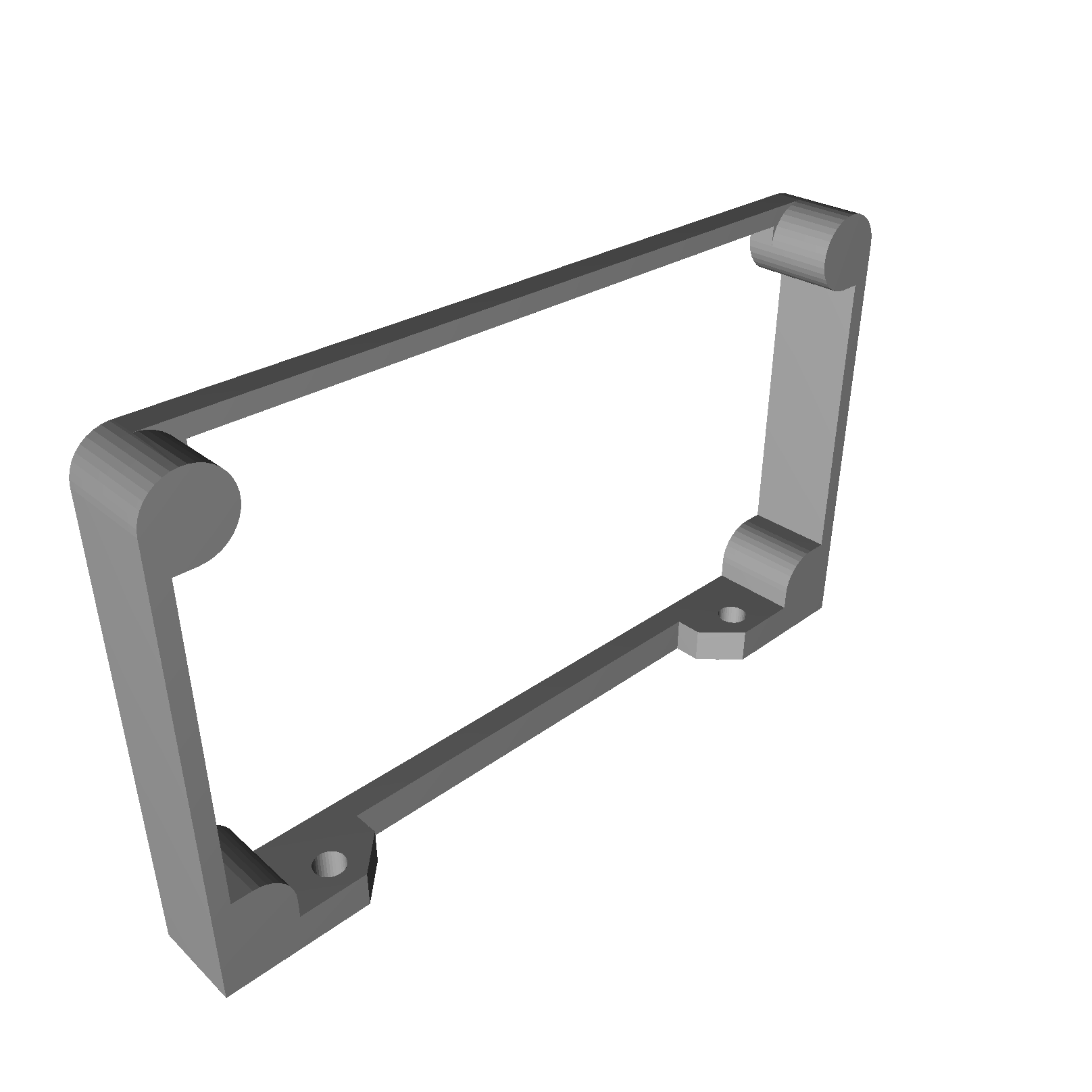

Pd16-v-spacer.png PD-LED Mounting Bracket - Vertical (Scott Danesi) File:Pd-led-vspacer.stl

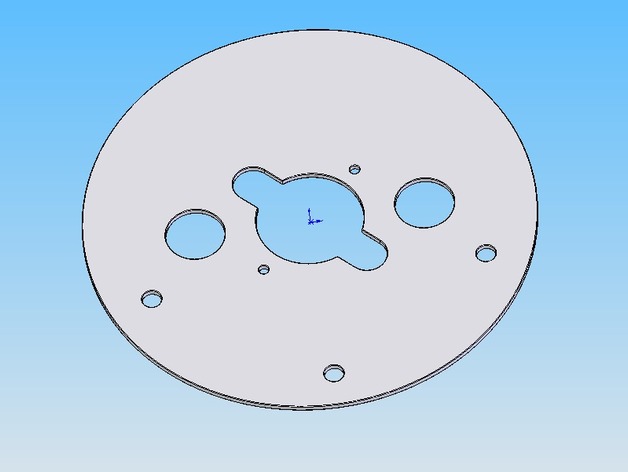

Pop-bumper-template.jpg Williams Pop Bumper Template File:Pop-bumper-template.stl

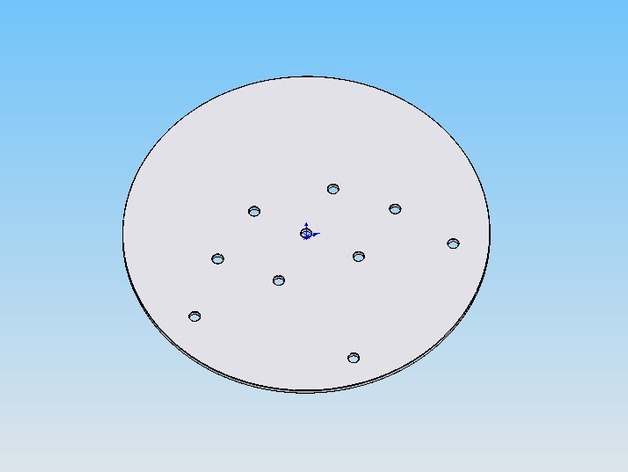

Pop-bumper-template-center.jpg Williams Pop Bumper Template Center Holes File:Pop-bumper-template-center.stl

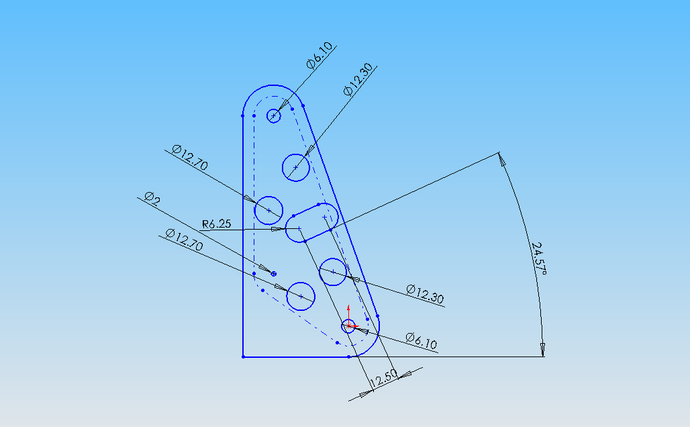

Sling-template.png Williams Slingshot Template File:Slingshot-template.stl

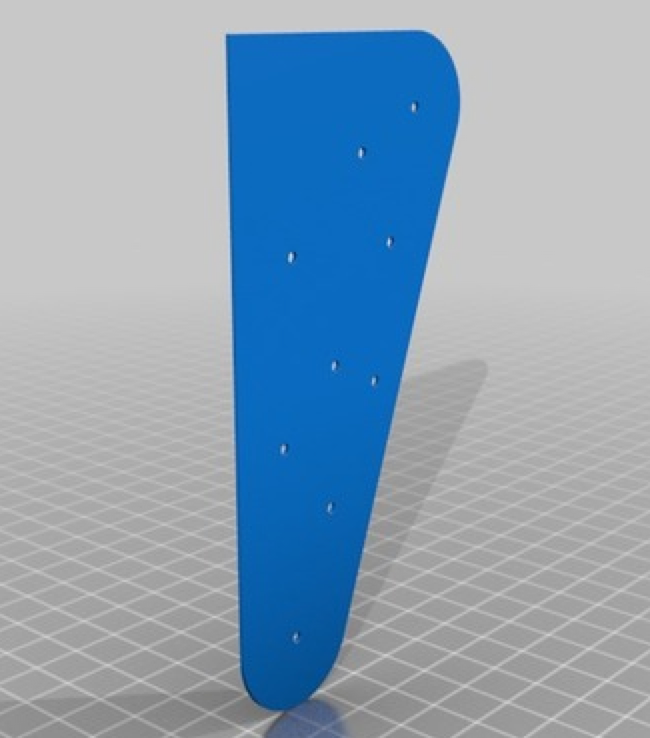

Sling-template-center.png Williams Slingshot Template Center Holes File:Sling-template-center.stl

Off the shelf parts

Image Description File
Lamp Socket 077-5030-00.png 555 Lamp Socket 077-5030-00

Solidworks 2013

Media:Lamp Socket 077-5030-00.zip
Lamp Socket F1P-E-12-07-00.png 44 Socket Staple Down F1P-E-12-07-00

Solidworks 2013

Media:Lamp Socket F1P-E-12-07-00.zip
Lamp Socket F1P-E-12-06-00.png 44 Socket Under Playfield F1P-E-12-06-00

Solidworks 2013

Media:Lamp Socket F1P-E-12-06-00.zip
Lamp Socket Bally E-120-81.png 44 Socket Under Playfield Short (Bally E-120-81)

Solidworks 2013

Media:Lamp Socket Bally E-120-81.zip
Lamp Socket Bally E-120-99.PNG 44 Socket Under Playfield Flush (Bally E-120-99)

Solidworks 2013

Media:Lamp Socket Bally E-120-99.zip
Lamp Socket Bally E-120-162.png 44 Socket Under Playfield (Bally E-120-162)

Solidworks 2013

Media:Lamp Socket Bally E-120-162.zip
Lamp Socket Bally- Possibly E-120-84.png 44 Socket Under Playfield (Possibly Bally E-120-84)

Solidworks 2013

Media:Lamp Socket Bally- Possibly E-120-84.zip
Lamp Socket A-8798.png 89 Lamp Socket A-8798

Solidworks 2013

Media:Lamp Socket A-8798.zip

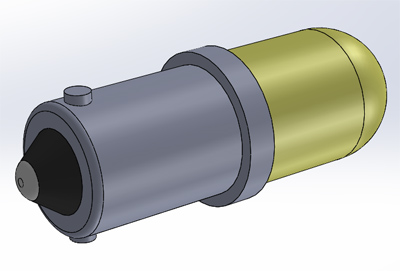

Led bulb.jpg LED bulb

Solidworks 2014

Media:Led bulb.SLDPRT
WPC Trough.png WPC Trough Assembly

Solidworks 2013

Media:WPC Trough.zip
SHooter Lane Kicker Assembly A-21022-1.png Shooter lane Kicker Assembly A-21022-1

Solidworks 2015

Media:Shooter Lane Kicker Assembly A-21022-1.zip

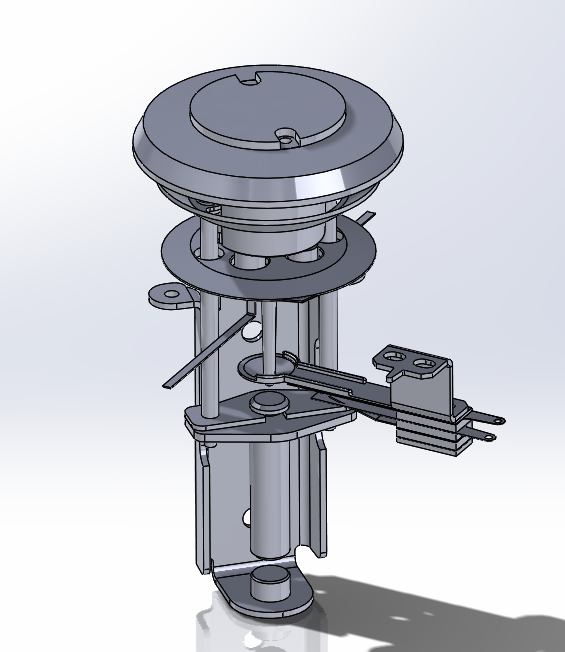

Pop Bumper ASSY B-9414.png WPC Pop Bumper Assembly

Solidworks 2013

Media:WPC Pop Bumper Assy B-9414.zip

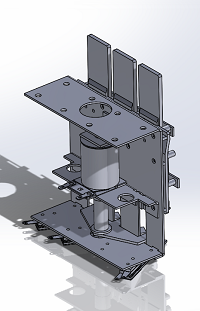

3 Bank Drop Target ASSY D-7931-3S.png 3 bank Drop Target SYS 7

Solidworks 2013

Media:3 Bank Drop Target ASSY D-7931-3S.zip
3 Bank Drop Target Sys11.png 3 bank Drop Target SYS11

Solidworks 2013

Media:3 bank Sys11 Drop Target Bank.zip
5 Bank JD Drop Target Bank A-16947.png 5 Bank JD Drop Target Bank A-16947

Solidworks 2015

Media:5 Bank JD Drop Target Bank A-16947.zip
Target 03-8033.png Drop Target Wedge Top

Solidworks 2013

Media:Target 03-8033.SLDPRT
Kicker Arm Sllingshot Assembly B-12665.png Kicker Arm Slingshot Assembly B-12665

Solidworks 2013

Media:Kicker Arm Sllingshot Assembly B-12665.zip
Kickout Hole SYS7.png Kickout Hole Sys 7

Solidworks 2013

Media:Kickout Hole SYS7.zip
Switch Rollover - Sys7.png Rollover Lane Switch Sys7

Solidworks 2015

Media:Switch Rollover - Sys7.zip
Rollover Lane Switch.png Rollover Lane Microswitch

Solidworks 2013

Media:Rollover Lane Switch.zip
Target 002 Assy.png Target 002

Solidworks 2013

Media:Target 002 Assy.zip
Target 003 Assy.png Target 003

Solidworks 2013

Media:Target 003 Assy.zip
Target 004 Assy.png Target 004

Solidworks 2013

Media:Target 004 Assy.zip
Target 005 Assy.png Target 005

Solidworks 2013

Media:Target 005 Assy.zip
Star Post PL-00172-OT.png Star Post 1" - PL-00172-OT

Solidworks 2013

Media:Star Post PL-00172-OT.SLDPRT

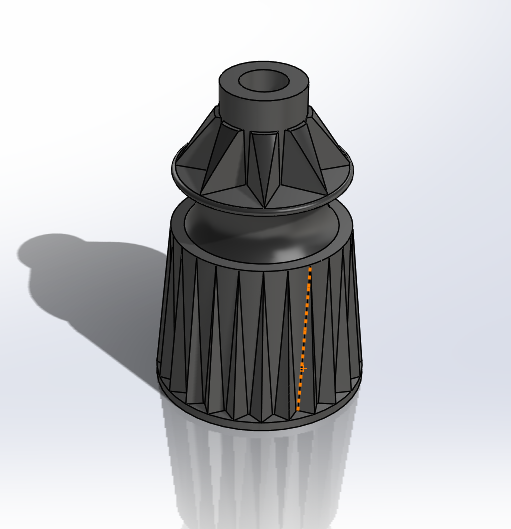

Star Post 1-1'16 -03-8319-13.png Star Post 1-1/16"" - 03-8319-13

Solidworks 2013

Media:Star Post 1-1'16 -03-8319-13.SLDPRT

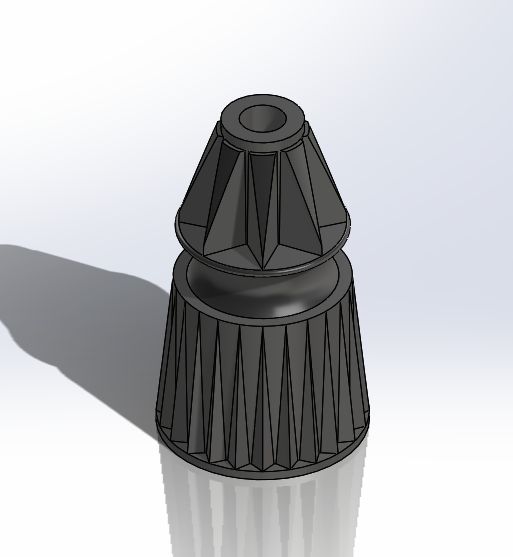

Star Post 1-3'16 -03-8370-10.png Star Post 1-3/16"" - 03-8370-10

Solidworks 2013

Media:Star Post 1-3'16 -03-8370-10.SLDPRT
Double Star Post 1-1^2 -03-8130-9.png Double Star Post - 1-1/2" 03-8130-9

Solidworks 2013

Media:Double Star Post 1-1^2 -03-8130-9.SLDPRT
Double Star Post .png Double Star Post - 1-1/16" 03-8247-13

Solidworks 2013

Media:Double Star Post.SLDPRT

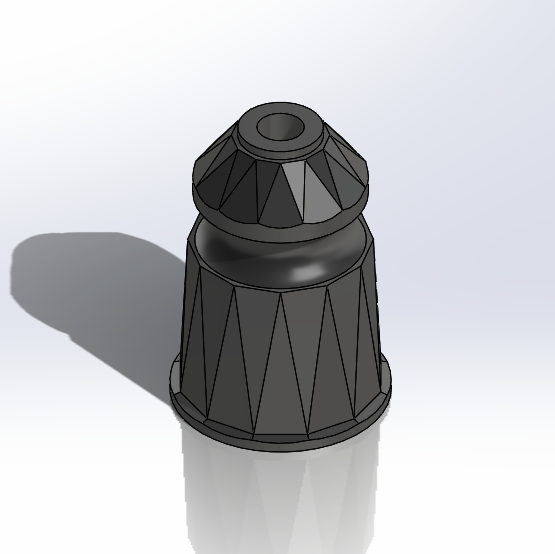

Post Faceted 1 inch C-11561-20 .png Post Faceted 1" C-11561-20

Solidworks 2013

Media:Post Faceted 1 inch C-11561-20.SLDPRT
Post Faceted 1-3`16 C-11562-20.png Post Faceted 1-3/16" C-11562-20

Solidworks 2013

Media:Post Faceted 1-3`16 C-11562-20.SLDPRT
Post 1 inch Concentric Fin C-951-4 .png Post 1" Concentric Fin C-951-4

Solidworks 2013

Media:Post 1 inch Concentric Fin C-951-4.SLDPRT
Post 1-1`8 Concentric Fin C-952-7 .png Post 1-1/8" Concentric Fin C-952-7

Solidworks 2013

Media:Post 1-1`8 Concentric Fin C-952-7.SLDPRT
Mini Post - Plastic 550-5052-02 .png Mini Post - Plastic 550-5052-02

Solidworks 2013

Media:Mini Post - Plastic 550-5052-02.SLDPRT
Bumper Post 8-32 Thread bottom 6-32 at Top 024056 .png Bumper Post 8-32 Thread at Bottom, 6-32 at Top 02-4056

Solidworks 2013

Media:Bumper Post 8-32 Thread bottom 6-32 at Top 024056.SLDPRT
Mini Post 6-32 Thread 02-4195.png Mini Post 6-32 Thread 02-4195

Solidworks 2013

Media:Mini Post 6-32 Thread 02-4195.SLDPRT
Mini Post 8-32 Thread.png Mini Post 8-32 Thread

Solidworks 2013

Media:Mini Post 8-32 Thread.SLDPRT
Mini Post 10-32 Thread.png Mini Post 10-32 Thread

Solidworks 2013

Media:Mini Post 10-32 Thread.SLDPRT
Post -Dual Ring 8-32 Thread 6-32 at top 02-4423.png Post-Dual Ring 8-32 Thread at Bottom, 6-32 at top 02-4423

Solidworks 2013

Media:Post -Dual Ring 8-32 Thread 6-32 at top 02-4423.SLDPRT
Threaded Post Screw 0001.png Threaded Post Screw 6-32 Top and Bottom, 1-5/8"

Solidworks 2013

Media:Threaded Post Screw 0001.SLDPRT
Threaded Post Screw 0002.png Threaded Post Screw 6-32 Top and Bottom, 1-1/2"

Solidworks 2013

Media:Threaded Post Screw 0002.SLDPRT
Rubber Post Cap.png Rubber Post Cap

Solidworks 2013

Media:Rubber Post Cap.SLDPRT
Insert - 1 inch RND PL-1ROT.png 1" Round Insert - Smooth

Solidworks 2013

Media:Insert - 1 inch RND PL-1ROT.SLDPRT
Insert - 1-3`16 inch RND PL-1316RBT.png 1-3/16" Round Insert - Smooth

Solidworks 2013

Media:Insert - 1-3`16 inch RND PL-1316RBT.SLDPRT

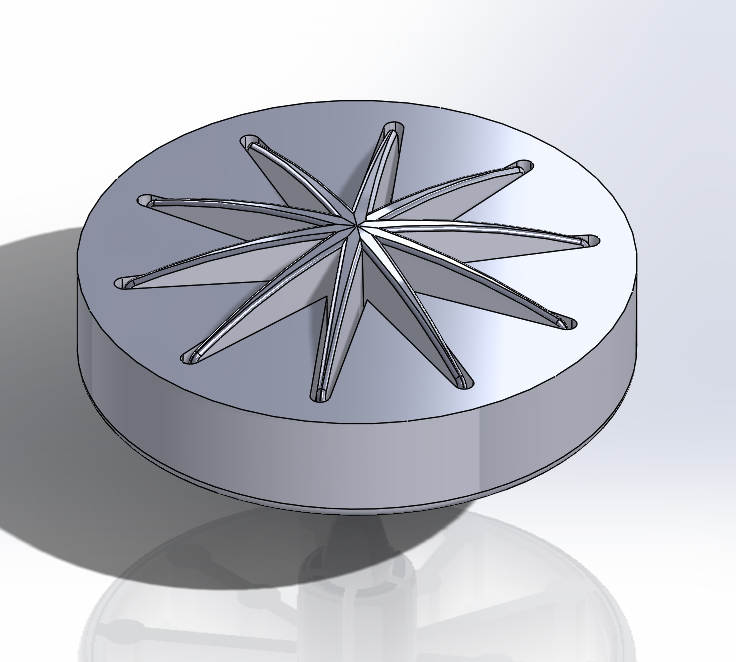

Insert - 5`8 inch RND PL-58ROS.png 5/8" Round Insert - Starburst Pattern

Solidworks 2013

Media:Insert - 5`8 inch RND PL-58ROS.SLDPRT
Insert - 3`4 inch RND PL-34RAS.png 3/4" Round Insert - Starburst Pattern

Solidworks 2013

Media:Insert - 3`4 inch RND PL-34RAS.SLDPRT
Insert - 1-1`2 inch RND PL-112ROT.png 1-1/2" Round Insert - Starburst Pattern

Solidworks 2013

Media:Insert - 1-1`2 inch RND PL-112ROT.SLDPRT
Insert - 3`4 inch Square PL-34SSB.png 3/4" Square Insert - Starburst Pattern

Solidworks 2013

Media:Insert - 3`4 inch Square PL-34SSB.SLDPRT
Insert - 1inch Square PL-1SSG.png 1" Square Insert - Starburst Pattern

Solidworks 2013

Media:Insert - 1inch Square PL-1SSG.SLDPRT
Insert - 3`4 x 1-1`2 inch RECT PL-112REC-YT.png 3/4 x 1-1/2" Rectangular Insert - "Grid" Pattern

Solidworks 2013

Media:Insert - 3`4 x 1-1`2 inch RECT PL-112REC-YT.SLDPRT

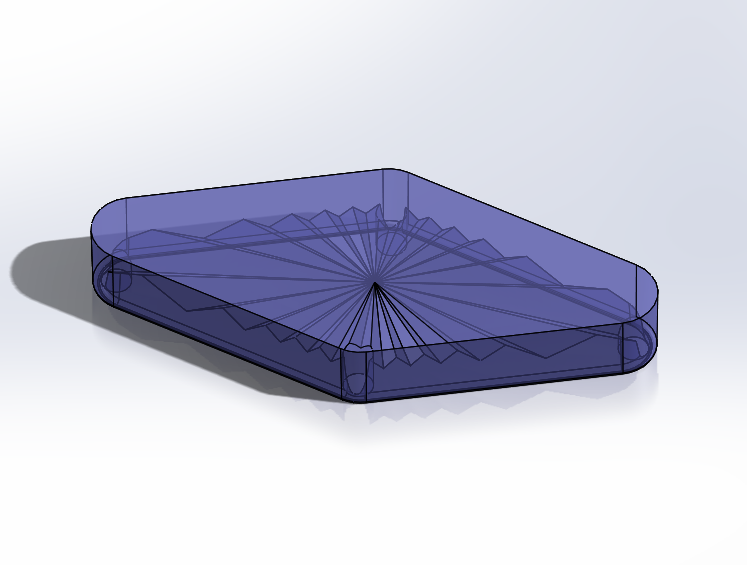

Insert - 1-5`8 inch OVAL PI-11234--OGT.png 3/4 x 1-5/8" Oval Insert

Solidworks 2013

Media:Insert - 1-5`8 inch OVAL PI-11234--OGT.SLDPRT
Insert - 1-3`16 inch Tri PI-1316TOS.png 1-3/6"" Triangular Insert - "Starburst" Pattern

Solidworks 2013

Media:Insert - 1-3`16 inch Tri PI-1316TOS.SLDPRT
Insert - 1-3`4 inch Diamond PL-134DBT.png 1-3/4 x 3/4"" Diamond Insert - "Starburst" Pattern

Solidworks 2013

Media:Insert - 1-3`4 inch Diamond PL-134DBT.SLDPRT
Insert 1-1'2 inch Triangle PI-112TGT.png 1-1/2" Triangle Insert - "Starburst" Pattern PI-112TGT

Solidworks 2013

Media:Insert 1-1'2 inch Triangle PI-112TGT.SLDPRT
Insert 2 inch Arrow PI-T2RT.png 2" Triangle Insert - "Starburst" Pattern PI-T2RT

Solidworks 2013

Media:Insert 2 inch Arrow PI-T2RT.SLDPRT
Insert 2-1'2 inch Arrow 03-8359-9.png 2-1/2" Arrow Insert - 03-8359-9

Solidworks 2013

Media:Insert 2-1'2 inch Arrow 03-8359-9.SLDPRT

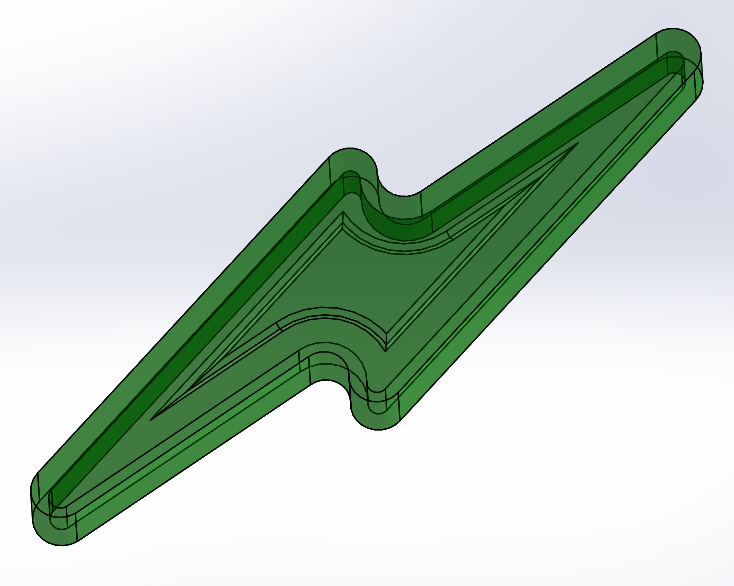

Lightning insert.jpg Lightning Insert - PI-3-LO

Solidworks 2014

Media:Lightning_insert.SLDPRT
Rollover C-901.png Rollover Insert C-901

Solidworks 2013

Media:Rollover C-9901.zip
Lane Guide 03-8318-25.PNG Lane Guide 03-8318-25

Solidworks 2013

Media:Lane Guide 03-8318-25.SLDPRT
Lane Guide.PNG Lane Guide

Solidworks 2013

Media:Lane Guide.SLDPRT
Ball Gate Assembly - RT A-8096-R.PNG Ball Gate Assembly - RT A-8096-R

Solidworks 2013

Media:Ball Gate Assembly - RT A-8096-R.ZIP
Stern-spinner-511-5113-00.jpg Stern Spinner 511-5113-00

Solidworks 2014

Media:Stern-511-5113-00.zip
Gate Assy 0001.PNG Ball Gate Assembly -

Solidworks 2013

Media:Gate Assy 0001.zip
Flipper Assembly WPC.png Flipper Assembly WPC (coil is incorrect)

Solidworks 2013

Media:Flipper Assembly WPC.zip
Flipper Bat 2inch.PNG Flipper Bat 2 Inch

Solidworks 2013

Media:Flipper Bat 2inch.zip
Flipper Bat 3inch.PNG Flipper Bat 3 inch

Solidworks 2013

Media:Flipper Bat 3inch.zip

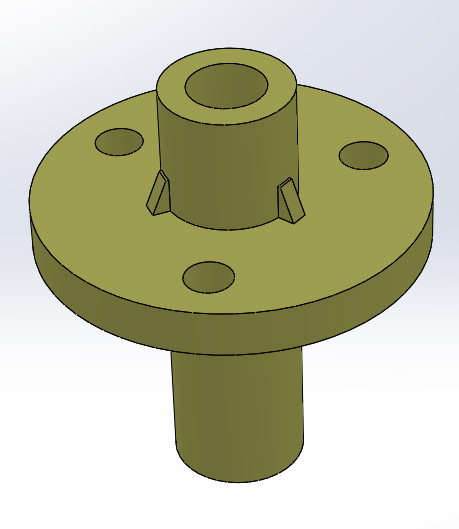

03-7568 flipper bushing.jpg Bally / Williams Bushing

Solidworks 2014

Media:03-7568 flipper bushing SW.SLDPRT
Opto Base MTG.png Opto Base Mounting

Solidworks 2013

Media:Opto Base MTG.sldprt
PF Test1.PNG Test PF shooter lane cut

Solidworks 2013

Media:Test PF 1.sldprt
Inlane williams plastic.jpg Williams Inlane

Solidworks 2014

Media:Inlane_williams_plastic.SLDPRT

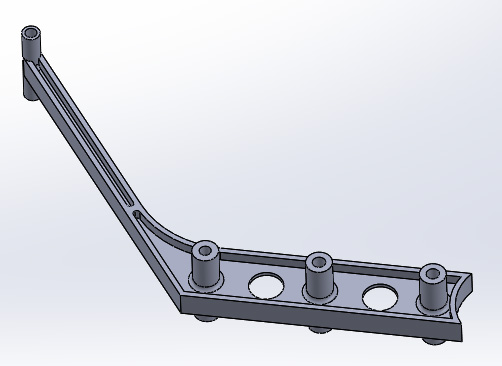

Inlane de-sega-stern plastic.jpg Data East / SEGA / Stern

Solidworks 2014

Media:Inlane DE-sega-stern.SLDPRT

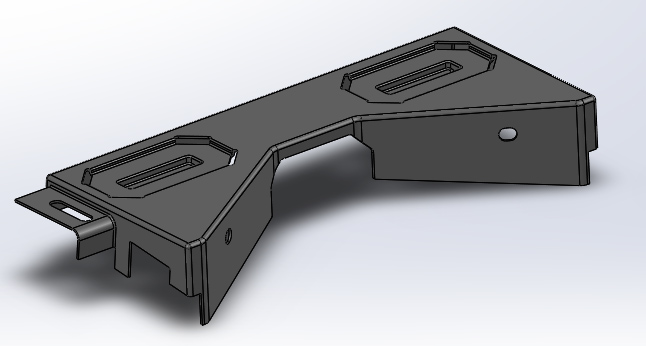

Apron stern.jpg Stern

Solidworks 2014

Media:Apron stern.SLDPRT

Non Standard Parts

Image Description File

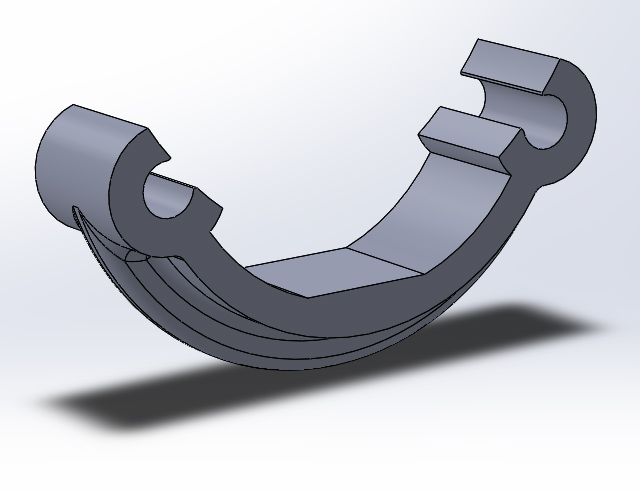

Wireform bracket.jpg 3d printable wireform bracket to be used with any 1/8" round material (ABS, steel, polyethylene tubing, etc)

Solidworks 2014

Media:Wireform bracket.SLDPRT

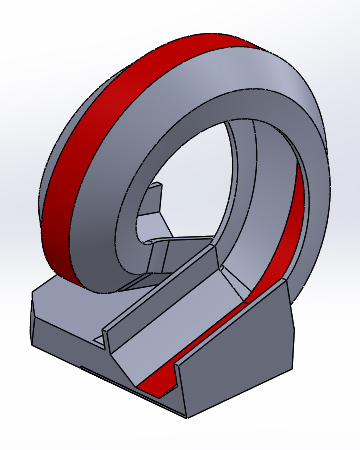

Loop da loop ramp.jpg 3d printable loop da loop ramp

Solidworks 2014

Media:Loop_da_loop_ramp.SLDPRT

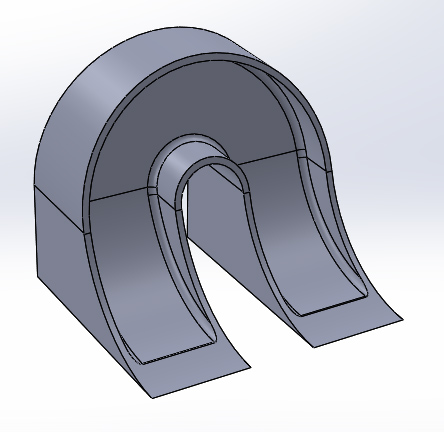

Vertical loop ramp.jpg 3d printable vertical loopback ramp

Solidworks 2014

Media:Vertical loop ramp.SLDPRT
